Schema documentation for component CommitmentTypeIndicationType

Showing:

Diagrams

Instances

Properties

Source

Used by

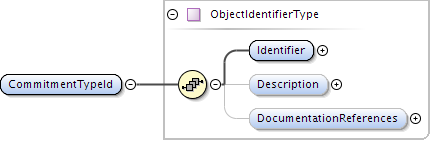

Element CommitmentTypeIndicationType / CommitmentTypeId

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ObjectIdentifierType

Properties

content:

complex

Model

Identifier , Description{0,1} , DocumentationReferences{0,1}

Children

Description, DocumentationReferences, Identifier

Instance

<CommitmentTypeId>
  <Identifier Qualifier="">{1,1}</Identifier>
  <Description>{0,1}</Description>
  <DocumentationReferences>{0,1}</DocumentationReferences>
</CommitmentTypeId>

Source

<xs:element name="CommitmentTypeId" type="ObjectIdentifierType"/>

Element CommitmentTypeIndicationType / ObjectReference

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:anyURI

Properties

content:	simple
minOccurs:	0
maxOccurs:	unbounded

Source

<xs:element name="ObjectReference" type="xs:anyURI" minOccurs="0" maxOccurs="unbounded"/>

Element CommitmentTypeIndicationType / AllSignedDataObjects

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Source

<xs:element name="AllSignedDataObjects"/>

Element CommitmentTypeIndicationType / CommitmentTypeQualifiers

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CommitmentTypeQualifiersListType

Properties

content:	complex
minOccurs:	0

Model

CommitmentTypeQualifier*

Children

CommitmentTypeQualifier

Instance

<CommitmentTypeQualifiers>
  <CommitmentTypeQualifier>{0,unbounded}</CommitmentTypeQualifier>
</CommitmentTypeQualifiers>

Source

<xs:element name="CommitmentTypeQualifiers" type="CommitmentTypeQualifiersListType" minOccurs="0"/>

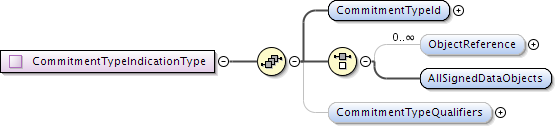

Complex Type CommitmentTypeIndicationType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CommitmentTypeIndication, SignedDataObjectPropertiesType/CommitmentTypeIndication

Model

CommitmentTypeId , (ObjectReference* | AllSignedDataObjects) , CommitmentTypeQualifiers{0,1}

Children

AllSignedDataObjects, CommitmentTypeId, CommitmentTypeQualifiers, ObjectReference

Source

<xs:complexType name="CommitmentTypeIndicationType">
  <xs:sequence>
    <xs:element name="CommitmentTypeId" type="ObjectIdentifierType"/>
    <xs:choice>
      <xs:element name="ObjectReference" type="xs:anyURI" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="AllSignedDataObjects"/>
    </xs:choice>
    <xs:element name="CommitmentTypeQualifiers" type="CommitmentTypeQualifiersListType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
