Schema documentation for component SignatureProductionPlaceType

Showing:

Diagrams

Properties

Source

Used by

Element SignatureProductionPlaceType / City

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="City" type="xs:string" minOccurs="0"/>

Element SignatureProductionPlaceType / StateOrProvince

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="StateOrProvince" type="xs:string" minOccurs="0"/>

Element SignatureProductionPlaceType / PostalCode

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="PostalCode" type="xs:string" minOccurs="0"/>

Element SignatureProductionPlaceType / CountryName

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="CountryName" type="xs:string" minOccurs="0"/>

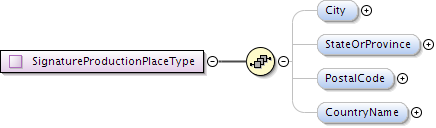

Complex Type SignatureProductionPlaceType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

SignatureProductionPlace, SignedSignaturePropertiesType/SignatureProductionPlace

Model

City{0,1} , StateOrProvince{0,1} , PostalCode{0,1} , CountryName{0,1}

Children

City, CountryName, PostalCode, StateOrProvince

Source

<xs:complexType name="SignatureProductionPlaceType">
  <xs:sequence>
    <xs:element name="City" type="xs:string" minOccurs="0"/>
    <xs:element name="StateOrProvince" type="xs:string" minOccurs="0"/>
    <xs:element name="PostalCode" type="xs:string" minOccurs="0"/>
    <xs:element name="CountryName" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
