Schema documentation for component CertificateValuesType

Showing:

Attributes

Diagrams

Properties

Source

Used by

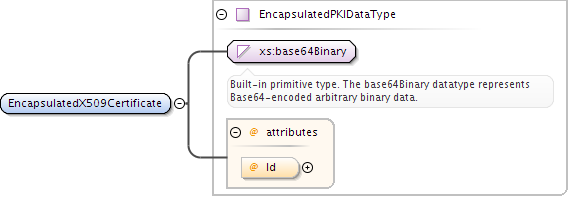

Element CertificateValuesType / EncapsulatedX509Certificate

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

EncapsulatedPKIDataType

Properties

content:

complex

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="EncapsulatedX509Certificate" type="EncapsulatedPKIDataType"/>

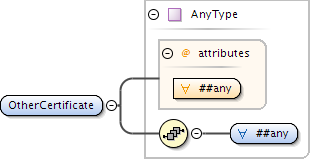

Element CertificateValuesType / OtherCertificate

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

AnyType

Properties

content:	complex
mixed:	true

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Default	Use	Annotation
ANY attribute from ANY namespace

Source

<xs:element name="OtherCertificate" type="AnyType"/>

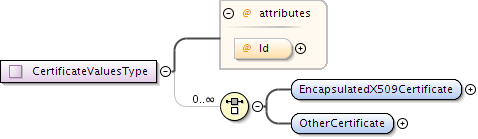

Complex Type CertificateValuesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CertificateValues, UnsignedSignaturePropertiesType/CertificateValues

Model

EncapsulatedX509Certificate | OtherCertificate

Children

EncapsulatedX509Certificate, OtherCertificate

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:complexType name="CertificateValuesType">
  <xs:choice minOccurs="0" maxOccurs="unbounded">
    <xs:element name="EncapsulatedX509Certificate" type="EncapsulatedPKIDataType"/>
    <xs:element name="OtherCertificate" type="AnyType"/>
  </xs:choice>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Attribute CertificateValuesType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

CertificateValuesType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>
