Showing:

Annotations
Attributes
Diagrams
Properties
Source
Used by
Element TLigneFacture / Date
Namespace No namespace
Annotations

Dates de réalisation de la prestation
Diagram
Diagram PES_Aller43.tmp#id63 PES_Aller43.tmp#id62
Type Base_Date
Properties
content: complex
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="Date" type="cm:Base_Date" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Dates de réalisation de la prestation</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / DateDebut
Namespace No namespace
Diagram
Diagram PES_Aller43.tmp#id63 PES_Aller43.tmp#id62
Type Base_Date
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DateDebut" type="cm:Base_Date"/>
Element TLigneFacture / DateFin
Namespace No namespace
Diagram
Diagram PES_Aller43.tmp#id63 PES_Aller43.tmp#id62
Type Base_Date
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DateFin" type="cm:Base_Date"/>

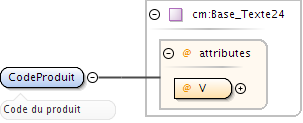

Element TLigneFacture / CodeProduit
Namespace No namespace
Annotations

Code du produit
Diagram
Diagram PES_Aller71.tmp#id260 PES_Aller71.tmp#id259
Type Base_Texte24
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Texte24 required
Source

<xs:element name="CodeProduit" type="cm:Base_Texte24">
  <xs:annotation>
    <xs:documentation>Code du produit</xs:documentation>
  </xs:annotation>
</xs:element>

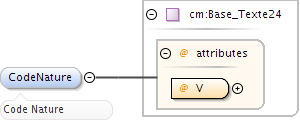

Element TLigneFacture / CodeNature
Namespace No namespace
Annotations

Code Nature
Diagram
Diagram PES_Aller71.tmp#id260 PES_Aller71.tmp#id259
Type Base_Texte24
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte24 required
Source

<xs:element name="CodeNature" type="cm:Base_Texte24" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Code Nature</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / Libelle
Namespace No namespace
Annotations

Libellé détaillé du produit
Diagram
Diagram PES_Aller91.tmp#id49 PES_Aller91.tmp#id48
Type Base_Texte100
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Texte100 required
Source

<xs:element name="Libelle" type="cm:Base_Texte100">
  <xs:annotation>
    <xs:documentation>Libellé détaillé du produit</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / Unite
Namespace No namespace
Annotations

Nature de l'unité d'oeuvre
Diagram
Diagram PES_Aller90.tmp#id56 PES_Aller90.tmp#id55
Type Base_Texte38
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte38 required
Source

<xs:element name="Unite" type="cm:Base_Texte38" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Nature de l'unité d'oeuvre</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / Quantite
Namespace No namespace
Annotations

Quantité d'unité
Diagram
Diagram PES_Aller84.tmp#id118 PES_Aller84.tmp#id117
Type Base_Montant
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="Quantite" type="cm:Base_Montant" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Quantité d'unité</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / MtUnitaire
Namespace No namespace
Annotations

Prix de chaque Unité
Diagram
Diagram PES_Aller84.tmp#id118 PES_Aller84.tmp#id117
Type Base_Montant
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="MtUnitaire" type="cm:Base_Montant" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Prix de chaque Unité</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / MtBase
Namespace No namespace
Annotations

Base de calcul du prix
Diagram
Diagram PES_Aller147.tmp#id177 PES_Aller147.tmp#id176
Type Base_Taux
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Taux required
Source

<xs:element name="MtBase" type="cm:Base_Taux" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Base de calcul du prix</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / Taux
Namespace No namespace
Diagram
Diagram PES_Aller72.tmp#id708 PES_Aller72.tmp#id707
Type Base_Taux3
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Taux3 required
Source

<xs:element name="Taux" type="cm:Base_Taux3" minOccurs="0"/>
Element TLigneFacture / MtRemise
Namespace No namespace
Annotations

Montant de la Remise HT
Diagram
Diagram PES_Aller84.tmp#id118 PES_Aller84.tmp#id117
Type Base_Montant
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="MtRemise" type="cm:Base_Montant" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Montant de la Remise HT</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / MtHT
Namespace No namespace
Annotations

Montant HT de la Ligne après remise
Diagram
Diagram PES_Aller84.tmp#id118 PES_Aller84.tmp#id117
Type Base_Montant
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="MtHT" type="cm:Base_Montant">
  <xs:annotation>
    <xs:documentation>Montant HT de la Ligne après remise</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / TauxTVA
Namespace No namespace
Annotations

Taux de TVA appliqué à cette ligne
Diagram
Diagram PES_Aller147.tmp#id177 PES_Aller147.tmp#id176
Type Base_Taux
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Taux required
Source

<xs:element name="TauxTVA" type="cm:Base_Taux">
  <xs:annotation>
    <xs:documentation>Taux de TVA appliqué à cette ligne</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / MtTVA
Namespace No namespace
Diagram
Diagram PES_Aller84.tmp#id118 PES_Aller84.tmp#id117
Type Base_Montant
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="MtTVA" type="cm:Base_Montant"/>
Element TLigneFacture / MtTTC
Namespace No namespace
Diagram
Diagram PES_Aller84.tmp#id118 PES_Aller84.tmp#id117
Type Base_Montant
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="MtTTC" type="cm:Base_Montant"/>
Element TLigneFacture / Ordre
Namespace No namespace
Annotations

Numéro d'ordre de la ligne de prestation
Diagram
Diagram PES_Aller235.tmp#id304 PES_Aller235.tmp#id303
Type Base_Num3
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Num3 required
Source

<xs:element name="Ordre" type="cm:Base_Num3">
  <xs:annotation>
    <xs:documentation>Numéro d'ordre de la ligne de prestation</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneFacture / OrdreEdition
Namespace No namespace
Annotations

Numéro d'ordre dans l'affichage de la facture
Diagram
Diagram PES_Aller235.tmp#id304 PES_Aller235.tmp#id303
Type Base_Num3
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num3 required
Source

<xs:element name="OrdreEdition" type="cm:Base_Num3" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Numéro d'ordre dans l'affichage de la facture</xs:documentation>
  </xs:annotation>
</xs:element>

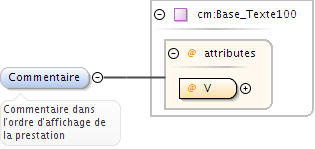

Element TLigneFacture / Commentaire
Namespace No namespace
Annotations

Commentaire dans l'ordre d'affichage de la prestation
Diagram
Diagram PES_Aller91.tmp#id49 PES_Aller91.tmp#id48
Type Base_Texte100
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Attributes
QName Type Fixed Default Use Annotation
V V_Texte100 required
Source

<xs:element name="Commentaire" type="cm:Base_Texte100" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Commentaire dans l'ordre d'affichage de la prestation</xs:documentation>
  </xs:annotation>
</xs:element>

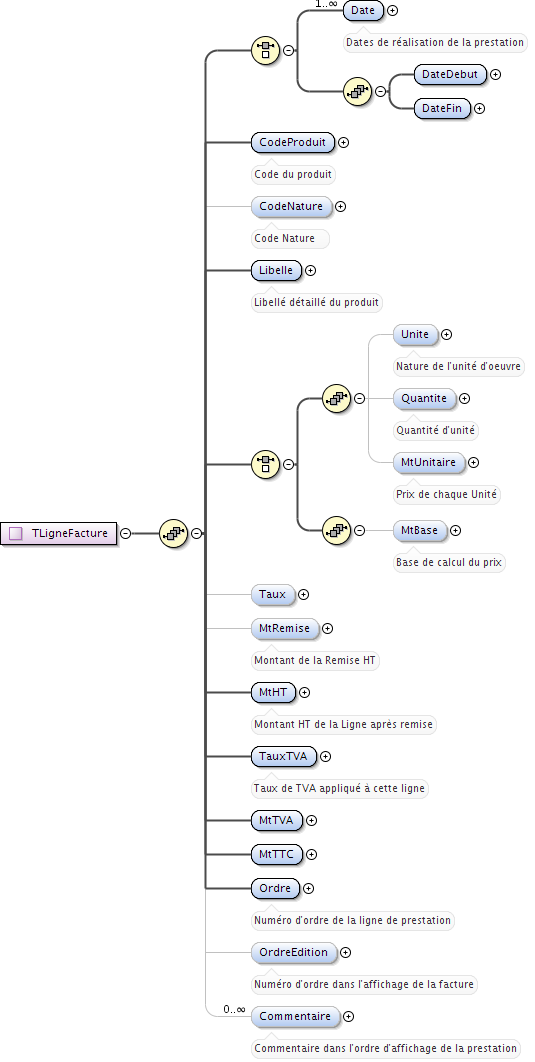

Complex Type TLigneFacture
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/aller
Diagram
Diagram PES_Aller174.tmp#id1041 PES_Aller174.tmp#id1042 PES_Aller174.tmp#id1043 PES_Aller174.tmp#id1044 PES_Aller174.tmp#id1045 PES_Aller174.tmp#id1046 PES_Aller174.tmp#id1047 PES_Aller174.tmp#id1048 PES_Aller174.tmp#id1049 PES_Aller174.tmp#id1050 PES_Aller174.tmp#id1051 PES_Aller174.tmp#id1052 PES_Aller174.tmp#id1053 PES_Aller174.tmp#id1054 PES_Aller174.tmp#id1055 PES_Aller174.tmp#id1056 PES_Aller174.tmp#id1057 PES_Aller174.tmp#id1058 PES_Aller174.tmp#id1059
Used by
Model (Date+ | (DateDebut , DateFin)) , CodeProduit , CodeNature{0,1} , Libelle , ((Unite{0,1} , Quantite{0,1} , MtUnitaire{0,1}) | (MtBase{0,1})) , Taux{0,1} , MtRemise{0,1} , MtHT , TauxTVA , MtTVA , MtTTC , Ordre , OrdreEdition{0,1} , Commentaire*
Children CodeNature, CodeProduit, Commentaire, Date, DateDebut, DateFin, Libelle, MtBase, MtHT, MtRemise, MtTTC, MtTVA, MtUnitaire, Ordre, OrdreEdition, Quantite, Taux, TauxTVA, Unite
Source

<xs:complexType name="TLigneFacture">
  <xs:sequence>
    <xs:choice>
      <xs:element name="Date" type="cm:Base_Date" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Dates de réalisation de la prestation</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:sequence>
        <xs:element name="DateDebut" type="cm:Base_Date"/>
        <xs:element name="DateFin" type="cm:Base_Date"/>
      </xs:sequence>
    </xs:choice>
    <xs:element name="CodeProduit" type="cm:Base_Texte24">
      <xs:annotation>
        <xs:documentation>Code du produit</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CodeNature" type="cm:Base_Texte24" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Code Nature</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Libelle" type="cm:Base_Texte100">
      <xs:annotation>
        <xs:documentation>Libellé détaillé du produit</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:choice>
      <xs:sequence>
        <xs:element name="Unite" type="cm:Base_Texte38" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Nature de l'unité d'oeuvre</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Quantite" type="cm:Base_Montant" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Quantité d'unité</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="MtUnitaire" type="cm:Base_Montant" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Prix de chaque Unité</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
      <xs:sequence>
        <xs:element name="MtBase" type="cm:Base_Taux" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Base de calcul du prix</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:choice>
    <xs:element name="Taux" type="cm:Base_Taux3" minOccurs="0"/>
    <xs:element name="MtRemise" type="cm:Base_Montant" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Montant de la Remise HT</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MtHT" type="cm:Base_Montant">
      <xs:annotation>
        <xs:documentation>Montant HT de la Ligne après remise</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TauxTVA" type="cm:Base_Taux">
      <xs:annotation>
        <xs:documentation>Taux de TVA appliqué à cette ligne</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="MtTVA" type="cm:Base_Montant"/>
    <xs:element name="MtTTC" type="cm:Base_Montant"/>
    <xs:element name="Ordre" type="cm:Base_Num3">
      <xs:annotation>
        <xs:documentation>Numéro d'ordre de la ligne de prestation</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="OrdreEdition" type="cm:Base_Num3" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Numéro d'ordre dans l'affichage de la facture</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Commentaire" type="cm:Base_Texte100" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Commentaire dans l'ordre d'affichage de la prestation</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
