Schema documentation for component TPES

Showing:

Attributes

Diagrams

Instances

Properties

Source

Used by

Element TPES_RecetteAller / EnTeteRecette

Namespace

No namespace

Diagram

Properties

content:

complex

Model

IdVer , InfoDematerialisee{0,1}

Children

IdVer, InfoDematerialisee

Instance

<EnTeteRecette>
  <IdVer V="">{1,1}</IdVer>
  <InfoDematerialisee V="">{0,1}</InfoDematerialisee>
</EnTeteRecette>

Source

<xs:element name="EnTeteRecette">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="IdVer" type="cm:Base_Num2"/>
      <xs:element name="InfoDematerialisee" type="cm:Base_Booleen" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element EnTeteRecette / TPES_RecetteAller / IdVer

Namespace

No namespace

Diagram

Type

Base_Num2

Properties

content:

complex

Attributes

QName	Type	Fixed	Default	Use	Annotation
V	V_Num2			required

Source

<xs:element name="IdVer" type="cm:Base_Num2"/>

Element EnTeteRecette / TPES_RecetteAller / InfoDematerialisee

Namespace

No namespace

Diagram

Type

Base_Booleen

Properties

content:	complex
minOccurs:	0

Attributes

QName	Type	Fixed	Default	Use	Annotation
V	V_Booleen			required

Source

<xs:element name="InfoDematerialisee" type="cm:Base_Booleen" minOccurs="0"/>

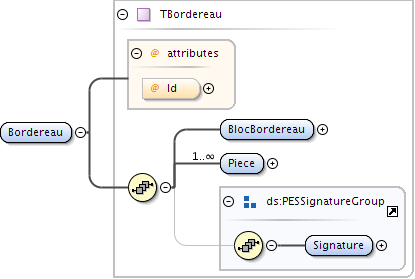

Element TPES_RecetteAller / Bordereau

Namespace

No namespace

Diagram

Type

TBordereau

Properties

content:	complex
maxOccurs:	unbounded

Model

BlocBordereau , Piece+ , ds:Signature

Children

BlocBordereau, Piece, ds:Signature

Instance

<Bordereau Id="">
  <BlocBordereau>{1,1}</BlocBordereau>
  <Piece>{1,unbounded}</Piece>
</Bordereau>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="Bordereau" type="TBordereau" maxOccurs="unbounded"/>

Complex Type TPES_RecetteAller

Namespace

http://www.minefi.gouv.fr/cp/helios/pes_v2/recette/r0/aller

Diagram

Used by

Element

PES_Aller/PES_RecetteAller

Model

EnTeteRecette , Bordereau+

Children

Bordereau, EnTeteRecette

Source

<xs:complexType name="TPES_RecetteAller">
  <xs:sequence>
    <xs:element name="EnTeteRecette">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="IdVer" type="cm:Base_Num2"/>
          <xs:element name="InfoDematerialisee" type="cm:Base_Booleen" minOccurs="0"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="Bordereau" type="TBordereau" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
