Schema documentation for component OCSPRefType

Showing:

Attributes

Diagrams

Instances

Properties

Source

Used by

Element OCSPRefType / OCSPIdentifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

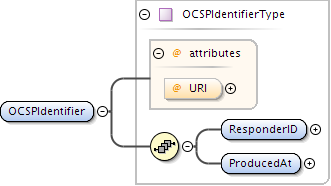

Diagram

Type

OCSPIdentifierType

Properties

content:

complex

Model

ResponderID , ProducedAt

Children

ProducedAt, ResponderID

Instance

<OCSPIdentifier URI="">
  <ResponderID>{1,1}</ResponderID>
  <ProducedAt>{1,1}</ProducedAt>
</OCSPIdentifier>

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			optional

Source

<xs:element name="OCSPIdentifier" type="OCSPIdentifierType"/>

Element OCSPRefType / DigestAlgAndValue

Namespace

http://uri.etsi.org/01903/v1.1.1#

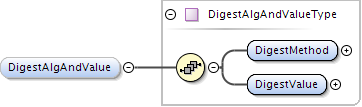

Diagram

Type

DigestAlgAndValueType

Properties

content:	complex
minOccurs:	0

Model

DigestMethod , DigestValue

Children

DigestMethod, DigestValue

Instance

<DigestAlgAndValue>
  <DigestMethod Algorithm="">{1,1}</DigestMethod>
  <DigestValue>{1,1}</DigestValue>
</DigestAlgAndValue>

Source

<xs:element name="DigestAlgAndValue" type="DigestAlgAndValueType" minOccurs="0"/>

Complex Type OCSPRefType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

OCSPRefsType/OCSPRef

Model

OCSPIdentifier , DigestAlgAndValue{0,1}

Children

DigestAlgAndValue, OCSPIdentifier

Source

<xs:complexType name="OCSPRefType">
  <xs:sequence>
    <xs:element name="OCSPIdentifier" type="OCSPIdentifierType"/>
    <xs:element name="DigestAlgAndValue" type="DigestAlgAndValueType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
