Element TPiece / BlocPiece
Namespace No namespace
Diagram
Diagram PES_Aller197.tmp#id126 PES_Aller197.tmp#id161 PES_Aller197.tmp#id125
Type TBlocPiece
Properties
content: complex
Model InfoPce , DGP{0,1}
Children DGP, InfoPce
Instance

<BlocPiece>
  <InfoPce>{1,1}</InfoPce>
  <DGP>{0,1}</DGP>
</BlocPiece>
Source

<xs:element name="BlocPiece" type="TBlocPiece"/>
Element TPiece / LigneDePiece
Namespace No namespace
Diagram
Diagram PES_Aller89.tmp#id181 PES_Aller89.tmp#id264 PES_Aller89.tmp#id180
Type TLigneDePiece
Properties
content: complex
maxOccurs: unbounded
Model BlocLignePiece , Tiers{0,1}
Children BlocLignePiece, Tiers
Instance

<LigneDePiece>
  <BlocLignePiece>{1,1}</BlocLignePiece>
  <Tiers>{0,1}</Tiers>
</LigneDePiece>
Source

<xs:element name="LigneDePiece" type="TLigneDePiece" maxOccurs="unbounded"/>
Element TPiece / BlocPiece
Namespace No namespace
Diagram
Diagram PES_Aller197.tmp#id444 PES_Aller197.tmp#id445 PES_Aller197.tmp#id446 PES_Aller197.tmp#id450 PES_Aller197.tmp#id451 PES_Aller197.tmp#id454 PES_Aller197.tmp#id457 PES_Aller197.tmp#id458 PES_Aller197.tmp#id459 PES_Aller197.tmp#id463 PES_Aller197.tmp#id464 PES_Aller197.tmp#id465 PES_Aller197.tmp#id443
Type TBlocPiece
Properties
content: complex
Model CodServ{0,1} , Affect{0,1} , CodProd{0,1} , IdPce , TypPce , NatPce , IdRol{0,1} , DteAsp{0,1} , ObjPce{0,1} , DebFact{0,1} , FinFact{0,1} , PJRef*
Children Affect, CodProd, CodServ, DebFact, DteAsp, FinFact, IdPce, IdRol, NatPce, ObjPce, PJRef, TypPce
Instance

<BlocPiece>
  <CodServ V="">{0,1}</CodServ>
  <Affect V="">{0,1}</Affect>
  <CodProd V="">{0,1}</CodProd>
  <IdPce V="">{1,1}</IdPce>
  <TypPce V="">{1,1}</TypPce>
  <NatPce V="">{1,1}</NatPce>
  <IdRol V="">{0,1}</IdRol>
  <DteAsp V="">{0,1}</DteAsp>
  <ObjPce V="">{0,1}</ObjPce>
  <DebFact V="">{0,1}</DebFact>
  <FinFact V="">{0,1}</FinFact>
  <PJRef>{0,unbounded}</PJRef>
</BlocPiece>
Source

<xs:element name="BlocPiece" type="TBlocPiece"/>
Element TPiece / LigneDePiece
Namespace No namespace
Diagram
Diagram PES_Aller89.tmp#id468 PES_Aller89.tmp#id536 PES_Aller89.tmp#id556 PES_Aller89.tmp#id467
Type TLigneDePiece
Properties
content: complex
maxOccurs: unbounded

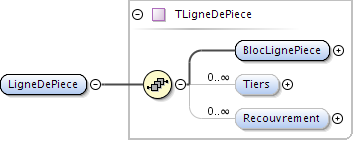

Model BlocLignePiece , Tiers* , Recouvrement*
Children BlocLignePiece, Recouvrement, Tiers
Instance

<LigneDePiece>
  <BlocLignePiece>{1,1}</BlocLignePiece>
  <Tiers>{0,unbounded}</Tiers>
  <Recouvrement>{0,unbounded}</Recouvrement>
</LigneDePiece>
Source

<xs:element name="LigneDePiece" type="TLigneDePiece" maxOccurs="unbounded"/>
Complex Type TPiece
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/depense/r0/aller
Diagram
Diagram PES_Aller118.tmp#id124 PES_Aller118.tmp#id179
Used by
Model BlocPiece , LigneDePiece+
Children BlocPiece, LigneDePiece
Source

<xs:complexType name="TPiece">
  <xs:sequence>
    <xs:element name="BlocPiece" type="TBlocPiece"/>
    <xs:element name="LigneDePiece" type="TLigneDePiece" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type TPiece
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/recette/r0/aller
Diagram
Diagram PES_Aller118.tmp#id442 PES_Aller118.tmp#id466
Used by
Model BlocPiece , LigneDePiece+
Children BlocPiece, LigneDePiece
Source

<xs:complexType name="TPiece">
  <xs:sequence>
    <xs:element name="BlocPiece" type="TBlocPiece"/>
    <xs:element name="LigneDePiece" type="TLigneDePiece" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
