Schema documentation for component CRLIdentifierType

Showing:

Attributes

Diagrams

Properties

Source

Used by

Element CRLIdentifierType / Issuer

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:

simple

Source

<xs:element name="Issuer" type="xs:string"/>

Element CRLIdentifierType / IssueTime

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:dateTime

Properties

content:

simple

Source

<xs:element name="IssueTime" type="xs:dateTime"/>

Element CRLIdentifierType / Number

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:integer

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="Number" type="xs:integer" minOccurs="0"/>

Complex Type CRLIdentifierType

Namespace

http://uri.etsi.org/01903/v1.1.1#

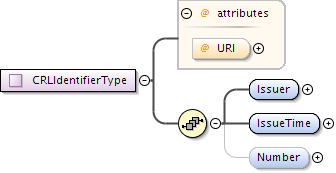

Diagram

Used by

Element

CRLRefType/CRLIdentifier

Model

Issuer , IssueTime , Number{0,1}

Children

IssueTime, Issuer, Number

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			optional

Source

<xs:complexType name="CRLIdentifierType">
  <xs:sequence>
    <xs:element name="Issuer" type="xs:string"/>
    <xs:element name="IssueTime" type="xs:dateTime"/>
    <xs:element name="Number" type="xs:integer" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="URI" type="xs:anyURI" use="optional"/>
</xs:complexType>

Attribute CRLIdentifierType / @URI

Namespace

No namespace

Type

xs:anyURI

Properties

use:	optional

Used by

Complex Type

CRLIdentifierType

Source

<xs:attribute name="URI" type="xs:anyURI" use="optional"/>
