Schema documentation for component SignedPropertiesType

Showing:

Attributes

Diagrams

Instances

Properties

Source

Used by

Element SignedPropertiesType / SignedSignatureProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

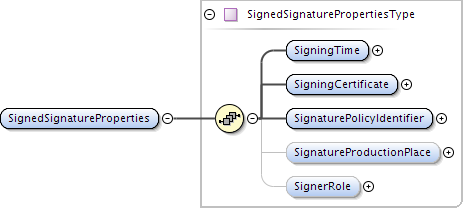

Diagram

Type

SignedSignaturePropertiesType

Properties

content:

complex

Model

SigningTime , SigningCertificate , SignaturePolicyIdentifier , SignatureProductionPlace{0,1} , SignerRole{0,1}

Children

SignaturePolicyIdentifier, SignatureProductionPlace, SignerRole, SigningCertificate, SigningTime

Instance

<SignedSignatureProperties>
  <SigningTime>{1,1}</SigningTime>
  <SigningCertificate>{1,1}</SigningCertificate>
  <SignaturePolicyIdentifier>{1,1}</SignaturePolicyIdentifier>
  <SignatureProductionPlace>{0,1}</SignatureProductionPlace>
  <SignerRole>{0,1}</SignerRole>
</SignedSignatureProperties>

Source

<xs:element name="SignedSignatureProperties" type="SignedSignaturePropertiesType"/>

Element SignedPropertiesType / SignedDataObjectProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

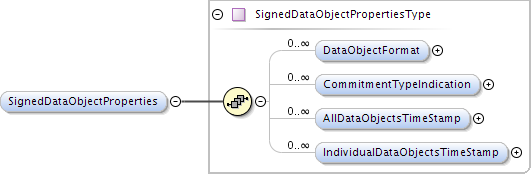

Diagram

Type

SignedDataObjectPropertiesType

Properties

content:	complex
minOccurs:	0

Model

DataObjectFormat* , CommitmentTypeIndication* , AllDataObjectsTimeStamp* , IndividualDataObjectsTimeStamp*

Children

AllDataObjectsTimeStamp, CommitmentTypeIndication, DataObjectFormat, IndividualDataObjectsTimeStamp

Instance

<SignedDataObjectProperties>
  <DataObjectFormat ObjectReference="">{0,unbounded}</DataObjectFormat>
  <CommitmentTypeIndication>{0,unbounded}</CommitmentTypeIndication>
  <AllDataObjectsTimeStamp>{0,unbounded}</AllDataObjectsTimeStamp>
  <IndividualDataObjectsTimeStamp>{0,unbounded}</IndividualDataObjectsTimeStamp>
</SignedDataObjectProperties>

Source

<xs:element name="SignedDataObjectProperties" type="SignedDataObjectPropertiesType" minOccurs="0"/>

Complex Type SignedPropertiesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

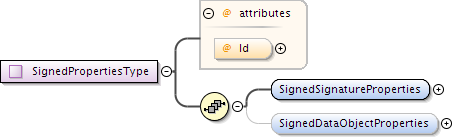

Diagram

Used by

Elements

QualifyingPropertiesType/SignedProperties, SignedProperties

Model

SignedSignatureProperties , SignedDataObjectProperties{0,1}

Children

SignedDataObjectProperties, SignedSignatureProperties

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:complexType name="SignedPropertiesType">
  <xs:sequence>
    <xs:element name="SignedSignatureProperties" type="SignedSignaturePropertiesType"/>
    <xs:element name="SignedDataObjectProperties" type="SignedDataObjectPropertiesType" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Attribute SignedPropertiesType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

SignedPropertiesType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>
