Main schema PES_V2_Acquit_Autonome.xsd
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/retour
Properties
attribute form default: unqualified
element form default: unqualified
Element PES_ACQUIT
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/retour
Diagram
Diagram PES_V2_Acquit_Autonome_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_Rev0_retour_PES_ACQUIT_Enveloppe PES_V2_Acquit_Autonome_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_Rev0_retour_PES_ACQUIT_EnTetePES PES_V2_Acquit_Autonome_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_Rev0_retour_PES_ACQUIT_ACQUIT PES_V2_Acquit_Autonome_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_Rev0_retour_PES_ACQUIT
Type PES_ACQUIT
Properties
content: complex
Model Enveloppe , EnTetePES , ACQUIT
Children ACQUIT, EnTetePES, Enveloppe
Instance

<PES_ACQUIT xmlns="http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/retour">
  <Enveloppe>{1,1}</Enveloppe>
  <EnTetePES>{1,1}</EnTetePES>
  <ACQUIT>{1,1}</ACQUIT>
</PES_ACQUIT>
Source

<xs:element name="PES_ACQUIT" type="PES_ACQUIT"/>

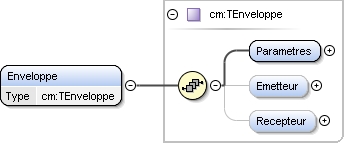

Element PES_ACQUIT / Enveloppe
Namespace No namespace
Diagram
Diagram Class_Enveloppe_xsd.tmp#TEnveloppe_Parametres Class_Enveloppe_xsd.tmp#TEnveloppe_Emetteur Class_Enveloppe_xsd.tmp#TEnveloppe_Recepteur Class_Enveloppe_xsd.tmp#TEnveloppe
Type TEnveloppe
Properties
content: complex
Model Parametres , Emetteur{0,1} , Recepteur{0,1}
Children Emetteur, Parametres, Recepteur
Instance

<Enveloppe>
  <Parametres>{1,1}</Parametres>
  <Emetteur>{0,1}</Emetteur>
  <Recepteur>{0,1}</Recepteur>
</Enveloppe>
Source

<xs:element name="Enveloppe" type="cm:TEnveloppe"/>
Element PES_ACQUIT / EnTetePES
Namespace No namespace
Diagram
Diagram Class_EntetePES_xsd.tmp#TEnTetePES_DteStr Class_EntetePES_xsd.tmp#TEnTetePES_IdPost Class_EntetePES_xsd.tmp#TEnTetePES_LibellePoste Class_EntetePES_xsd.tmp#TEnTetePES_IdColl Class_EntetePES_xsd.tmp#TEnTetePES_FinJur Class_EntetePES_xsd.tmp#TEnTetePES_CodCol Class_EntetePES_xsd.tmp#TEnTetePES_CodBud Class_EntetePES_xsd.tmp#TEnTetePES_LibelleColBud Class_EntetePES_xsd.tmp#TEnTetePES
Type TEnTetePES
Properties
content: complex
Model DteStr , IdPost , LibellePoste{0,1} , IdColl{0,1} , FinJur{0,1} , CodCol , CodBud{0,1} , LibelleColBud{0,1}
Children CodBud, CodCol, DteStr, FinJur, IdColl, IdPost, LibelleColBud, LibellePoste
Instance

<EnTetePES>
  <DteStr V="">{1,1}</DteStr>
  <IdPost V="">{1,1}</IdPost>
  <LibellePoste V="">{0,1}</LibellePoste>
  <IdColl V="">{0,1}</IdColl>
  <FinJur V="">{0,1}</FinJur>
  <CodCol V="">{1,1}</CodCol>
  <CodBud V="">{0,1}</CodBud>
  <LibelleColBud V="">{0,1}</LibelleColBud>
</EnTetePES>
Source

<xs:element name="EnTetePES" type="cm:TEnTetePES"/>

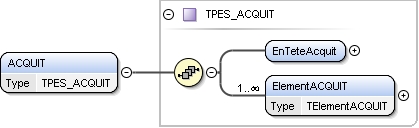

Element PES_ACQUIT / ACQUIT
Namespace No namespace
Diagram
Diagram PES_V2_Acquit_Autonome_xsd.tmp#TPES_ACQUIT_EnTeteAcquit PES_V2_Acquit_Autonome_xsd.tmp#TPES_ACQUIT_ElementACQUIT PES_V2_Acquit_Autonome_xsd.tmp#TPES_ACQUIT
Type TPES_ACQUIT
Properties
content: complex
Model EnTeteAcquit , ElementACQUIT+
Children ElementACQUIT, EnTeteAcquit
Instance

<ACQUIT>
  <EnTeteAcquit>{1,1}</EnTeteAcquit>
  <ElementACQUIT>{1,unbounded}</ElementACQUIT>
</ACQUIT>
Source

<xs:element name="ACQUIT" type="TPES_ACQUIT"/>
Element TPES_ACQUIT / EnTeteAcquit
Namespace No namespace
Diagram
Diagram PES_V2_Acquit_Autonome_xsd.tmp#TPES_ACQUIT_TPES_ACQUIT_EnTeteAcquit_IdVer
Properties
content: complex
Model IdVer
Children IdVer
Instance

<EnTeteAcquit>
  <IdVer V="">{1,1}</IdVer>
</EnTeteAcquit>
Source

<xs:element name="EnTeteAcquit">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="IdVer" type="cm:Base_Num2"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

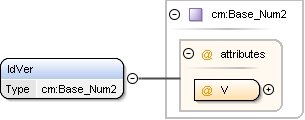

Element TPES_ACQUIT / EnTeteAcquit / IdVer
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num2_V Simple_Type_xsd.tmp#Base_Num2
Type Base_Num2
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Num2 required
Source

<xs:element name="IdVer" type="cm:Base_Num2"/>

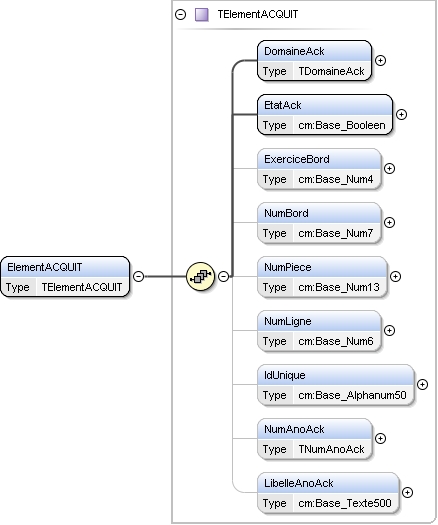

Element TPES_ACQUIT / ElementACQUIT
Namespace No namespace
Diagram
Diagram PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_DomaineAck PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_EtatAck PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_ExerciceBord PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_NumBord PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_NumPiece PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_NumLigne PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_IdUnique PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_NumAnoAck PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_LibelleAnoAck PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT
Type TElementACQUIT
Properties
content: complex
maxOccurs: unbounded
Model DomaineAck , EtatAck , ExerciceBord{0,1} , NumBord{0,1} , NumPiece{0,1} , NumLigne{0,1} , IdUnique{0,1} , NumAnoAck{0,1} , LibelleAnoAck{0,1}
Children DomaineAck, EtatAck, ExerciceBord, IdUnique, LibelleAnoAck, NumAnoAck, NumBord, NumLigne, NumPiece
Instance

<ElementACQUIT>
  <DomaineAck V="">{1,1}</DomaineAck>
  <EtatAck V="">{1,1}</EtatAck>
  <ExerciceBord V="">{0,1}</ExerciceBord>
  <NumBord V="">{0,1}</NumBord>
  <NumPiece V="">{0,1}</NumPiece>
  <NumLigne V="">{0,1}</NumLigne>
  <IdUnique V="">{0,1}</IdUnique>
  <NumAnoAck V="">{0,1}</NumAnoAck>
  <LibelleAnoAck V="">{0,1}</LibelleAnoAck>
</ElementACQUIT>
Source

<xs:element name="ElementACQUIT" type="TElementACQUIT" maxOccurs="unbounded"/>
Element TElementACQUIT / DomaineAck
Namespace No namespace
Diagram
Diagram CommunAck_xsd.tmp#TDomaineAck_V CommunAck_xsd.tmp#TDomaineAck
Type TDomaineAck
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="DomaineAck" type="TDomaineAck"/>

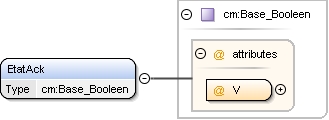

Element TElementACQUIT / EtatAck
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Booleen_V Simple_Type_xsd.tmp#Base_Booleen
Type Base_Booleen
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Booleen required
Source

<xs:element name="EtatAck" type="cm:Base_Booleen"/>

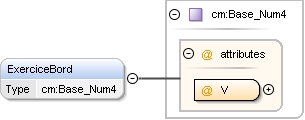

Element TElementACQUIT / ExerciceBord
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num4_V Simple_Type_xsd.tmp#Base_Num4
Type Base_Num4
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num4 required
Source

<xs:element name="ExerciceBord" type="cm:Base_Num4" minOccurs="0"/>

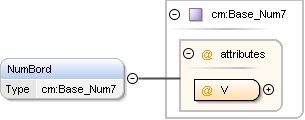

Element TElementACQUIT / NumBord
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num7_V Simple_Type_xsd.tmp#Base_Num7
Type Base_Num7
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num7 required
Source

<xs:element name="NumBord" type="cm:Base_Num7" minOccurs="0"/>

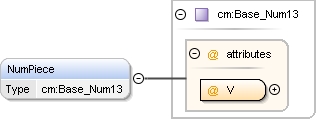

Element TElementACQUIT / NumPiece
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num13_V Simple_Type_xsd.tmp#Base_Num13
Type Base_Num13
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num13 required
Source

<xs:element name="NumPiece" type="cm:Base_Num13" minOccurs="0"/>
Element TElementACQUIT / NumLigne
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num6_V Simple_Type_xsd.tmp#Base_Num6
Type Base_Num6
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num6 required
Source

<xs:element name="NumLigne" type="cm:Base_Num6" minOccurs="0"/>

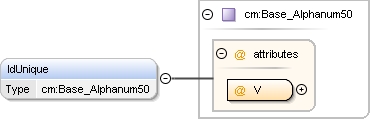

Element TElementACQUIT / IdUnique
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Alphanum50_V Simple_Type_xsd.tmp#Base_Alphanum50
Type Base_Alphanum50
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Alphanum50 required
Source

<xs:element name="IdUnique" type="cm:Base_Alphanum50" minOccurs="0"/>
Element TElementACQUIT / NumAnoAck
Namespace No namespace
Diagram
Diagram CommunAck_xsd.tmp#TNumAnoAck_V CommunAck_xsd.tmp#TNumAnoAck
Type TNumAnoAck
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="NumAnoAck" type="TNumAnoAck" minOccurs="0"/>

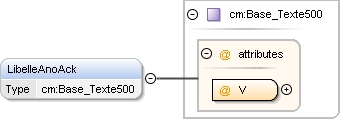

Element TElementACQUIT / LibelleAnoAck
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte500_V Simple_Type_xsd.tmp#Base_Texte500
Type Base_Texte500
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte500 required
Source

<xs:element name="LibelleAnoAck" type="cm:Base_Texte500" minOccurs="0"/>
Complex Type PES_ACQUIT
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/retour
Diagram
Diagram PES_V2_Acquit_Autonome_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_Rev0_retour_PES_ACQUIT_Enveloppe PES_V2_Acquit_Autonome_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_Rev0_retour_PES_ACQUIT_EnTetePES PES_V2_Acquit_Autonome_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_Rev0_retour_PES_ACQUIT_ACQUIT
Used by
Element PES_ACQUIT
Model Enveloppe , EnTetePES , ACQUIT
Children ACQUIT, EnTetePES, Enveloppe
Source

<xs:complexType name="PES_ACQUIT">
  <xs:sequence>
    <xs:element name="Enveloppe" type="cm:TEnveloppe"/>
    <xs:element name="EnTetePES" type="cm:TEnTetePES"/>
    <xs:element name="ACQUIT" type="TPES_ACQUIT"/>
  </xs:sequence>
</xs:complexType>
Complex Type TPES_ACQUIT
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/retour
Diagram
Diagram PES_V2_Acquit_Autonome_xsd.tmp#TPES_ACQUIT_EnTeteAcquit PES_V2_Acquit_Autonome_xsd.tmp#TPES_ACQUIT_ElementACQUIT
Used by
Model EnTeteAcquit , ElementACQUIT+
Children ElementACQUIT, EnTeteAcquit
Source

<xs:complexType name="TPES_ACQUIT">
  <xs:sequence>
    <xs:element name="EnTeteAcquit">
      <xs:complexType>
        <xs:sequence>
          <xs:element name="IdVer" type="cm:Base_Num2"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="ElementACQUIT" type="TElementACQUIT" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type TElementACQUIT
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/retour
Diagram
Diagram PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_DomaineAck PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_EtatAck PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_ExerciceBord PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_NumBord PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_NumPiece PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_NumLigne PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_IdUnique PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_NumAnoAck PES_V2_Acquit_Autonome_xsd.tmp#TElementACQUIT_LibelleAnoAck
Used by
Model DomaineAck , EtatAck , ExerciceBord{0,1} , NumBord{0,1} , NumPiece{0,1} , NumLigne{0,1} , IdUnique{0,1} , NumAnoAck{0,1} , LibelleAnoAck{0,1}
Children DomaineAck, EtatAck, ExerciceBord, IdUnique, LibelleAnoAck, NumAnoAck, NumBord, NumLigne, NumPiece
Source

<xs:complexType name="TElementACQUIT">
  <xs:sequence>
    <xs:element name="DomaineAck" type="TDomaineAck"/>
    <xs:element name="EtatAck" type="cm:Base_Booleen"/>
    <xs:element name="ExerciceBord" type="cm:Base_Num4" minOccurs="0"/>
    <xs:element name="NumBord" type="cm:Base_Num7" minOccurs="0"/>
    <xs:element name="NumPiece" type="cm:Base_Num13" minOccurs="0"/>
    <xs:element name="NumLigne" type="cm:Base_Num6" minOccurs="0"/>
    <xs:element name="IdUnique" type="cm:Base_Alphanum50" minOccurs="0"/>
    <xs:element name="NumAnoAck" type="TNumAnoAck" minOccurs="0"/>
    <xs:element name="LibelleAnoAck" type="cm:Base_Texte500" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
