Included schema Class_TiersDepense.xsd
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/aller
Properties
attribute form default: unqualified
element form default: unqualified
Element TInfoTiersDepense / IdTiers
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte15_V Simple_Type_xsd.tmp#Base_Texte15
Type Base_Texte15
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte15 required
Source

<xs:element name="IdTiers" type="cm:Base_Texte15" minOccurs="0"/>
Element TInfoTiersDepense / NatIdTiers
Namespace No namespace
Diagram
Diagram CommunPES_xsd.tmp#TNatIdTiers_V CommunPES_xsd.tmp#TNatIdTiers
Type TNatIdTiers
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="NatIdTiers" type="cm:TNatIdTiers" minOccurs="0"/>
Element TInfoTiersDepense / DteIdTiers
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DteIdTiers" type="cm:Base_Date" minOccurs="0"/>
Element TInfoTiersDepense / RefTiers
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte30_V Simple_Type_xsd.tmp#Base_Texte30
Type Base_Texte30
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte30 required
Source

<xs:element name="RefTiers" type="cm:Base_Texte30" minOccurs="0"/>
Element TInfoTiersDepense / CatTiers
Namespace No namespace
Diagram
Diagram CommunPES_xsd.tmp#TCatTiers_V CommunPES_xsd.tmp#TCatTiers
Type TCatTiers
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="CatTiers" type="cm:TCatTiers"/>
Element TInfoTiersDepense / NatJur
Namespace No namespace
Diagram
Diagram CommunPES_xsd.tmp#TNatJur_V CommunPES_xsd.tmp#TNatJur
Type TNatJur
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="NatJur" type="cm:TNatJur"/>
Element TInfoTiersDepense / Civilite
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte10_V Simple_Type_xsd.tmp#Base_Texte10
Type Base_Texte10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte10 required
Source

<xs:element name="Civilite" type="cm:Base_Texte10" minOccurs="0"/>
Element TInfoTiersDepense / Nom
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte38_V Simple_Type_xsd.tmp#Base_Texte38
Type Base_Texte38
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Texte38 required
Source

<xs:element name="Nom" type="cm:Base_Texte38"/>
Element TInfoTiersDepense / ComplNom
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte38_V Simple_Type_xsd.tmp#Base_Texte38
Type Base_Texte38
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte38 required
Source

<xs:element name="ComplNom" type="cm:Base_Texte38" minOccurs="0"/>
Element TInfoTiersDepense / Prenom
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte38_V Simple_Type_xsd.tmp#Base_Texte38
Type Base_Texte38
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte38 required
Source

<xs:element name="Prenom" type="cm:Base_Texte38" minOccurs="0"/>

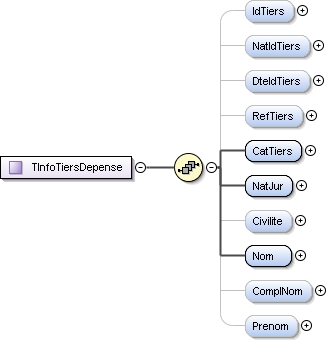

Complex Type TInfoTiersDepense
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/depense/r0/aller
Diagram
Diagram Class_TiersDepense_xsd.tmp#TInfoTiersDepense_IdTiers Class_TiersDepense_xsd.tmp#TInfoTiersDepense_NatIdTiers Class_TiersDepense_xsd.tmp#TInfoTiersDepense_DteIdTiers Class_TiersDepense_xsd.tmp#TInfoTiersDepense_RefTiers Class_TiersDepense_xsd.tmp#TInfoTiersDepense_CatTiers Class_TiersDepense_xsd.tmp#TInfoTiersDepense_NatJur Class_TiersDepense_xsd.tmp#TInfoTiersDepense_Civilite Class_TiersDepense_xsd.tmp#TInfoTiersDepense_Nom Class_TiersDepense_xsd.tmp#TInfoTiersDepense_ComplNom Class_TiersDepense_xsd.tmp#TInfoTiersDepense_Prenom
Used by
Model IdTiers{0,1} , NatIdTiers{0,1} , DteIdTiers{0,1} , RefTiers{0,1} , CatTiers , NatJur , Civilite{0,1} , Nom , ComplNom{0,1} , Prenom{0,1}
Children CatTiers, Civilite, ComplNom, DteIdTiers, IdTiers, NatIdTiers, NatJur, Nom, Prenom, RefTiers
Source

<xs:complexType name="TInfoTiersDepense">
  <xs:sequence>
    <xs:element name="IdTiers" type="cm:Base_Texte15" minOccurs="0"/>
    <xs:element name="NatIdTiers" type="cm:TNatIdTiers" minOccurs="0"/>
    <xs:element name="DteIdTiers" type="cm:Base_Date" minOccurs="0"/>
    <xs:element name="RefTiers" type="cm:Base_Texte30" minOccurs="0"/>
    <xs:element name="CatTiers" type="cm:TCatTiers"/>
    <xs:element name="NatJur" type="cm:TNatJur"/>
    <xs:element name="Civilite" type="cm:Base_Texte10" minOccurs="0"/>
    <xs:element name="Nom" type="cm:Base_Texte38"/>
    <xs:element name="ComplNom" type="cm:Base_Texte38" minOccurs="0"/>
    <xs:element name="Prenom" type="cm:Base_Texte38" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
