Included schema Class_MandatAller.xsd
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/aller
Properties
attribute form default: unqualified
element form default: unqualified
Element TBlocPiece / InfoPce
Namespace No namespace
Annotations

information pièce - obligatoire
Diagram
Diagram Class_MandatAller_xsd.tmp#TInfoPce_CodServ Class_MandatAller_xsd.tmp#TInfoPce_Affect Class_MandatAller_xsd.tmp#TInfoPce_IdPce Class_MandatAller_xsd.tmp#TInfoPce_TypPce Class_MandatAller_xsd.tmp#TInfoPce_NatPce Class_MandatAller_xsd.tmp#TInfoPce_Obj Class_MandatAller_xsd.tmp#TInfoPce_DteEch Class_MandatAller_xsd.tmp#TInfoPce_PJRef Class_MandatAller_xsd.tmp#TInfoPce_PJ Class_MandatAller_xsd.tmp#TInfoPce
Type TInfoPce
Properties
content: complex
Model CodServ{0,1} , Affect{0,1} , IdPce , TypPce , NatPce , Obj{0,1} , DteEch{0,1} , PJRef* , PJ{0,1}
Children Affect, CodServ, DteEch, IdPce, NatPce, Obj, PJ, PJRef, TypPce
Instance

<InfoPce>
  <CodServ V="">{0,1}</CodServ>
  <Affect V="">{0,1}</Affect>
  <IdPce V="">{1,1}</IdPce>
  <TypPce V="">{1,1}</TypPce>
  <NatPce V="">{1,1}</NatPce>
  <Obj V="">{0,1}</Obj>
  <DteEch V="">{0,1}</DteEch>
  <PJRef>{0,unbounded}</PJRef>
  <PJ V="">{0,1}</PJ>
</InfoPce>
Source

<xs:element name="InfoPce" type="TInfoPce">
  <xs:annotation>
    <xs:documentation>information pièce - obligatoire</xs:documentation>
  </xs:annotation>
</xs:element>
Element TInfoPce / CodServ
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte10_V Simple_Type_xsd.tmp#Base_Texte10
Type Base_Texte10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte10 required
Source

<xs:element name="CodServ" type="cm:Base_Texte10" minOccurs="0"/>
Element TInfoPce / Affect
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte10_V Simple_Type_xsd.tmp#Base_Texte10
Type Base_Texte10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte10 required
Source

<xs:element name="Affect" type="cm:Base_Texte10" minOccurs="0"/>
Element TInfoPce / IdPce
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num13_V Simple_Type_xsd.tmp#Base_Num13
Type Base_Num13
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Num13 required
Source

<xs:element name="IdPce" type="cm:Base_Num13"/>
Element TInfoPce / TypPce
Namespace No namespace
Diagram
Diagram CommunDepense_xsd.tmp#TTypPce_V CommunDepense_xsd.tmp#TTypPce
Type TTypPce
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="TypPce" type="TTypPce"/>
Element TInfoPce / NatPce
Namespace No namespace
Diagram
Diagram CommunDepense_xsd.tmp#TNatPce_V CommunDepense_xsd.tmp#TNatPce
Type TNatPce
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="NatPce" type="TNatPce"/>
Element TInfoPce / Obj
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte100_V Simple_Type_xsd.tmp#Base_Texte100
Type Base_Texte100
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte100 required
Source

<xs:element name="Obj" type="cm:Base_Texte100" minOccurs="0"/>
Element TInfoPce / DteEch
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DteEch" type="cm:Base_Date" minOccurs="0"/>
Element TInfoPce / PJRef
Namespace No namespace
Diagram
Diagram Class_PJReference_xsd.tmp#TPJReference_Support Class_PJReference_xsd.tmp#TPJReference_IdUnique Class_PJReference_xsd.tmp#TPJReference_NomPJ Class_PJReference_xsd.tmp#TPJReference
Type TPJReference
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Support , IdUnique , NomPJ{0,1}
Children IdUnique, NomPJ, Support
Instance

<PJRef>
  <Support V="">{1,1}</Support>
  <IdUnique V="">{1,1}</IdUnique>
  <NomPJ V="">{0,1}</NomPJ>
</PJRef>
Source

<xs:element name="PJRef" type="cm:TPJReference" minOccurs="0" maxOccurs="unbounded"/>
Element TInfoPce / PJ
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte250_V Simple_Type_xsd.tmp#Base_Texte250
Type Base_Texte250
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte250 required
Source

<xs:element name="PJ" type="cm:Base_Texte250" minOccurs="0"/>
Element TBlocPiece / DGP
Namespace No namespace
Annotations

délai global de paiement- facultatif
Diagram
Diagram Class_MandatAller_xsd.tmp#TDGP_Dgp Class_MandatAller_xsd.tmp#TDGP_DteDebDgp Class_MandatAller_xsd.tmp#TDGP_DteFinDgp Class_MandatAller_xsd.tmp#TDGP_DureeDgp Class_MandatAller_xsd.tmp#TDGP_CodIntMor Class_MandatAller_xsd.tmp#TDGP_TxIntMor Class_MandatAller_xsd.tmp#TDGP
Type TDGP
Properties
content: complex
minOccurs: 0
Model Dgp , DteDebDgp , DteFinDgp , DureeDgp , CodIntMor{0,1} , TxIntMor{0,1}
Children CodIntMor, Dgp, DteDebDgp, DteFinDgp, DureeDgp, TxIntMor
Instance

<DGP>
  <Dgp V="">{1,1}</Dgp>
  <DteDebDgp V="">{1,1}</DteDebDgp>
  <DteFinDgp V="">{1,1}</DteFinDgp>
  <DureeDgp V="">{1,1}</DureeDgp>
  <CodIntMor V="">{0,1}</CodIntMor>
  <TxIntMor V="">{0,1}</TxIntMor>
</DGP>
Source

<xs:element name="DGP" type="TDGP" minOccurs="0">
  <xs:annotation>
    <xs:documentation>délai global de paiement- facultatif</xs:documentation>
  </xs:annotation>
</xs:element>
Element TDGP / Dgp
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Booleen_V Simple_Type_xsd.tmp#Base_Booleen
Type Base_Booleen
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Booleen required
Source

<xs:element name="Dgp" type="cm:Base_Booleen"/>
Element TDGP / DteDebDgp
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DteDebDgp" type="cm:Base_Date"/>
Element TDGP / DteFinDgp
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DteFinDgp" type="cm:Base_Date"/>
Element TDGP / DureeDgp
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num2_V Simple_Type_xsd.tmp#Base_Num2
Type Base_Num2
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Num2 required
Source

<xs:element name="DureeDgp" type="cm:Base_Num2"/>
Element TDGP / CodIntMor
Namespace No namespace
Diagram
Diagram CommunDepense_xsd.tmp#TCodIntMor_V CommunDepense_xsd.tmp#TCodIntMor
Type TCodIntMor
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="CodIntMor" type="TCodIntMor" minOccurs="0"/>
Element TDGP / TxIntMor
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Taux_V Simple_Type_xsd.tmp#Base_Taux
Type Base_Taux
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Taux required
Source

<xs:element name="TxIntMor" type="cm:Base_Taux" minOccurs="0"/>

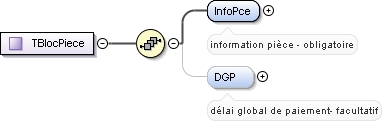

Complex Type TBlocPiece
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/depense/r0/aller
Diagram
Diagram Class_MandatAller_xsd.tmp#TBlocPiece_InfoPce Class_MandatAller_xsd.tmp#TBlocPiece_DGP
Used by
Model InfoPce , DGP{0,1}
Children DGP, InfoPce
Source

<xs:complexType name="TBlocPiece">
  <xs:sequence>
    <xs:element name="InfoPce" type="TInfoPce">
      <xs:annotation>
        <xs:documentation>information pièce - obligatoire</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="DGP" type="TDGP" minOccurs="0">
      <xs:annotation>
        <xs:documentation>délai global de paiement- facultatif</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type TInfoPce
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/depense/r0/aller
Diagram
Diagram Class_MandatAller_xsd.tmp#TInfoPce_CodServ Class_MandatAller_xsd.tmp#TInfoPce_Affect Class_MandatAller_xsd.tmp#TInfoPce_IdPce Class_MandatAller_xsd.tmp#TInfoPce_TypPce Class_MandatAller_xsd.tmp#TInfoPce_NatPce Class_MandatAller_xsd.tmp#TInfoPce_Obj Class_MandatAller_xsd.tmp#TInfoPce_DteEch Class_MandatAller_xsd.tmp#TInfoPce_PJRef Class_MandatAller_xsd.tmp#TInfoPce_PJ
Used by
Model CodServ{0,1} , Affect{0,1} , IdPce , TypPce , NatPce , Obj{0,1} , DteEch{0,1} , PJRef* , PJ{0,1}
Children Affect, CodServ, DteEch, IdPce, NatPce, Obj, PJ, PJRef, TypPce
Source

<xs:complexType name="TInfoPce">
  <xs:sequence>
    <xs:element name="CodServ" type="cm:Base_Texte10" minOccurs="0"/>
    <xs:element name="Affect" type="cm:Base_Texte10" minOccurs="0"/>
    <xs:element name="IdPce" type="cm:Base_Num13"/>
    <xs:element name="TypPce" type="TTypPce"/>
    <xs:element name="NatPce" type="TNatPce"/>
    <xs:element name="Obj" type="cm:Base_Texte100" minOccurs="0"/>
    <xs:element name="DteEch" type="cm:Base_Date" minOccurs="0"/>
    <xs:element name="PJRef" type="cm:TPJReference" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="PJ" type="cm:Base_Texte250" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type TDGP
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/depense/r0/aller
Diagram
Diagram Class_MandatAller_xsd.tmp#TDGP_Dgp Class_MandatAller_xsd.tmp#TDGP_DteDebDgp Class_MandatAller_xsd.tmp#TDGP_DteFinDgp Class_MandatAller_xsd.tmp#TDGP_DureeDgp Class_MandatAller_xsd.tmp#TDGP_CodIntMor Class_MandatAller_xsd.tmp#TDGP_TxIntMor
Used by
Element TBlocPiece/DGP
Model Dgp , DteDebDgp , DteFinDgp , DureeDgp , CodIntMor{0,1} , TxIntMor{0,1}
Children CodIntMor, Dgp, DteDebDgp, DteFinDgp, DureeDgp, TxIntMor
Source

<xs:complexType name="TDGP">
  <xs:sequence>
    <xs:element name="Dgp" type="cm:Base_Booleen"/>
    <xs:element name="DteDebDgp" type="cm:Base_Date"/>
    <xs:element name="DteFinDgp" type="cm:Base_Date"/>
    <xs:element name="DureeDgp" type="cm:Base_Num2"/>
    <xs:element name="CodIntMor" type="TCodIntMor" minOccurs="0"/>
    <xs:element name="TxIntMor" type="cm:Base_Taux" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
