Included schema Class_LigneTitreAller.xsd
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/aller
Properties
attribute form default: unqualified
element form default: unqualified

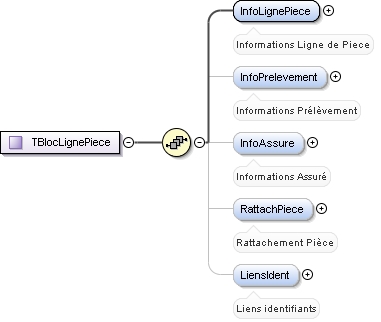

Element TBlocLignePiece / InfoLignePiece
Namespace No namespace
Annotations

Informations Ligne de Piece
Diagram

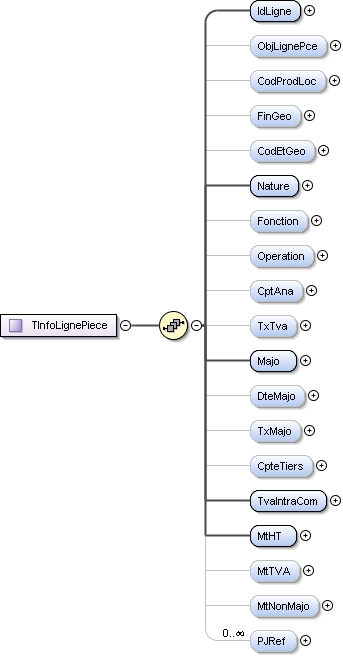

Diagram Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_IdLigne Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_ObjLignePce Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_CodProdLoc Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_FinGeo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_CodEtGeo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_Nature Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_Fonction Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_Operation Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_CptAna Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_TxTva Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_Majo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_DteMajo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_TxMajo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_CpteTiers Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_TvaIntraCom Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_MtHT Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_MtTVA Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_MtNonMajo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_PJRef Class_LigneTitreAller_xsd.tmp#TInfoLignePiece
Type TInfoLignePiece
Properties
content: complex
Model IdLigne , ObjLignePce{0,1} , CodProdLoc{0,1} , FinGeo{0,1} , CodEtGeo{0,1} , Nature , Fonction{0,1} , Operation{0,1} , CptAna{0,1} , TxTva{0,1} , Majo , DteMajo{0,1} , TxMajo{0,1} , CpteTiers{0,1} , TvaIntraCom , MtHT , MtTVA{0,1} , MtNonMajo{0,1} , PJRef*
Children CodEtGeo, CodProdLoc, CptAna, CpteTiers, DteMajo, FinGeo, Fonction, IdLigne, Majo, MtHT, MtNonMajo, MtTVA, Nature, ObjLignePce, Operation, PJRef, TvaIntraCom, TxMajo, TxTva
Instance

<InfoLignePiece>
  <IdLigne V="">{1,1}</IdLigne>
  <ObjLignePce V="">{0,1}</ObjLignePce>
  <CodProdLoc V="">{0,1}</CodProdLoc>
  <FinGeo V="">{0,1}</FinGeo>
  <CodEtGeo V="">{0,1}</CodEtGeo>
  <Nature V="">{1,1}</Nature>
  <Fonction V="">{0,1}</Fonction>
  <Operation V="">{0,1}</Operation>
  <CptAna V="">{0,1}</CptAna>
  <TxTva V="">{0,1}</TxTva>
  <Majo V="">{1,1}</Majo>
  <DteMajo V="">{0,1}</DteMajo>
  <TxMajo V="">{0,1}</TxMajo>
  <CpteTiers V="">{0,1}</CpteTiers>
  <TvaIntraCom V="">{1,1}</TvaIntraCom>
  <MtHT V="">{1,1}</MtHT>
  <MtTVA V="">{0,1}</MtTVA>
  <MtNonMajo V="">{0,1}</MtNonMajo>
  <PJRef>{0,unbounded}</PJRef>
</InfoLignePiece>
Source

<xs:element name="InfoLignePiece" type="TInfoLignePiece">
  <xs:annotation>
    <xs:documentation>Informations Ligne de Piece</xs:documentation>
  </xs:annotation>
</xs:element>
Element TInfoLignePiece / IdLigne
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num6_V Simple_Type_xsd.tmp#Base_Num6
Type Base_Num6
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Num6 required
Source

<xs:element name="IdLigne" type="cm:Base_Num6"/>
Element TInfoLignePiece / ObjLignePce
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte160_V Simple_Type_xsd.tmp#Base_Texte160
Type Base_Texte160
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte160 required
Source

<xs:element name="ObjLignePce" type="cm:Base_Texte160" minOccurs="0"/>
Element TInfoLignePiece / CodProdLoc
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Alphanum4_V Simple_Type_xsd.tmp#Base_Alphanum4
Type Base_Alphanum4
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Alphanum4 required
Source

<xs:element name="CodProdLoc" type="cm:Base_Alphanum4" minOccurs="0"/>
Element TInfoLignePiece / FinGeo
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num9_V Simple_Type_xsd.tmp#Base_Num9
Type Base_Num9
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num9 required
Source

<xs:element name="FinGeo" type="cm:Base_Num9" minOccurs="0"/>
Element TInfoLignePiece / CodEtGeo
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Alphanum3_V Simple_Type_xsd.tmp#Base_Alphanum3
Type Base_Alphanum3
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Alphanum3 required
Source

<xs:element name="CodEtGeo" type="cm:Base_Alphanum3" minOccurs="0"/>
Element TInfoLignePiece / Nature
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte12_V Simple_Type_xsd.tmp#Base_Texte12
Type Base_Texte12
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Texte12 required
Source

<xs:element name="Nature" type="cm:Base_Texte12"/>
Element TInfoLignePiece / Fonction
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num10_V Simple_Type_xsd.tmp#Base_Num10
Type Base_Num10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num10 required
Source

<xs:element name="Fonction" type="cm:Base_Num10" minOccurs="0"/>
Element TInfoLignePiece / Operation
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num10_V Simple_Type_xsd.tmp#Base_Num10
Type Base_Num10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num10 required
Source

<xs:element name="Operation" type="cm:Base_Num10" minOccurs="0"/>
Element TInfoLignePiece / CptAna
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Alphanum10_V Simple_Type_xsd.tmp#Base_Alphanum10
Type Base_Alphanum10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Alphanum10 required
Source

<xs:element name="CptAna" type="cm:Base_Alphanum10" minOccurs="0"/>
Element TInfoLignePiece / TxTva
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Taux_V Simple_Type_xsd.tmp#Base_Taux
Type Base_Taux
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Taux required
Source

<xs:element name="TxTva" type="cm:Base_Taux" minOccurs="0"/>
Element TInfoLignePiece / Majo
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Booleen_V Simple_Type_xsd.tmp#Base_Booleen
Type Base_Booleen
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Booleen required
Source

<xs:element name="Majo" type="cm:Base_Booleen"/>
Element TInfoLignePiece / DteMajo
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DteMajo" type="cm:Base_Date" minOccurs="0"/>
Element TInfoLignePiece / TxMajo
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Taux_V Simple_Type_xsd.tmp#Base_Taux
Type Base_Taux
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Taux required
Source

<xs:element name="TxMajo" type="cm:Base_Taux" minOccurs="0"/>
Element TInfoLignePiece / CpteTiers
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte12_V Simple_Type_xsd.tmp#Base_Texte12
Type Base_Texte12
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte12 required
Source

<xs:element name="CpteTiers" type="cm:Base_Texte12" minOccurs="0"/>
Element TInfoLignePiece / TvaIntraCom
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Booleen_V Simple_Type_xsd.tmp#Base_Booleen
Type Base_Booleen
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Booleen required
Source

<xs:element name="TvaIntraCom" type="cm:Base_Booleen"/>
Element TInfoLignePiece / MtHT
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Montant_V Simple_Type_xsd.tmp#Base_Montant
Type Base_Montant
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="MtHT" type="cm:Base_Montant"/>
Element TInfoLignePiece / MtTVA
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Montant_V Simple_Type_xsd.tmp#Base_Montant
Type Base_Montant
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="MtTVA" type="cm:Base_Montant" minOccurs="0"/>
Element TInfoLignePiece / MtNonMajo
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Montant_V Simple_Type_xsd.tmp#Base_Montant
Type Base_Montant
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="MtNonMajo" type="cm:Base_Montant" minOccurs="0"/>
Element TInfoLignePiece / PJRef
Namespace No namespace
Diagram
Diagram Class_PJReference_xsd.tmp#TPJReference_Support Class_PJReference_xsd.tmp#TPJReference_IdUnique Class_PJReference_xsd.tmp#TPJReference_NomPJ Class_PJReference_xsd.tmp#TPJReference
Type TPJReference
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Support , IdUnique , NomPJ{0,1}
Children IdUnique, NomPJ, Support
Instance

<PJRef>
  <Support V="">{1,1}</Support>
  <IdUnique V="">{1,1}</IdUnique>
  <NomPJ V="">{0,1}</NomPJ>
</PJRef>
Source

<xs:element name="PJRef" type="cm:TPJReference" minOccurs="0" maxOccurs="unbounded"/>
Element TBlocLignePiece / InfoPrelevement
Namespace No namespace
Annotations

Informations Prélèvement
Diagram

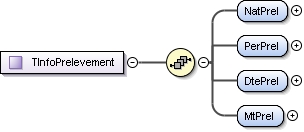

Diagram Class_LigneTitreAller_xsd.tmp#TInfoPrelevement_NatPrel Class_LigneTitreAller_xsd.tmp#TInfoPrelevement_PerPrel Class_LigneTitreAller_xsd.tmp#TInfoPrelevement_DtePrel Class_LigneTitreAller_xsd.tmp#TInfoPrelevement_MtPrel Class_LigneTitreAller_xsd.tmp#TInfoPrelevement
Type TInfoPrelevement
Properties
content: complex
minOccurs: 0
Model NatPrel , PerPrel , DtePrel , MtPrel
Children DtePrel, MtPrel, NatPrel, PerPrel
Instance

<InfoPrelevement>
  <NatPrel V="">{1,1}</NatPrel>
  <PerPrel V="">{1,1}</PerPrel>
  <DtePrel V="">{1,1}</DtePrel>
  <MtPrel V="">{1,1}</MtPrel>
</InfoPrelevement>
Source

<xs:element name="InfoPrelevement" type="TInfoPrelevement" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Informations Prélèvement</xs:documentation>
  </xs:annotation>
</xs:element>
Element TInfoPrelevement / NatPrel
Namespace No namespace
Diagram
Diagram CommunRecette_xsd.tmp#TNatPrel_V CommunRecette_xsd.tmp#TNatPrel
Type TNatPrel
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="NatPrel" type="TNatPrel"/>
Element TInfoPrelevement / PerPrel
Namespace No namespace
Diagram
Diagram CommunRecette_xsd.tmp#TPerPrel_V CommunRecette_xsd.tmp#TPerPrel
Type TPerPrel
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="PerPrel" type="TPerPrel"/>
Element TInfoPrelevement / DtePrel
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DtePrel" type="cm:Base_Date"/>
Element TInfoPrelevement / MtPrel
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Montant_V Simple_Type_xsd.tmp#Base_Montant
Type Base_Montant
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="MtPrel" type="cm:Base_Montant"/>
Element TBlocLignePiece / InfoAssure
Namespace No namespace
Annotations

Informations Assuré
Diagram
Diagram Class_LigneTitreAller_xsd.tmp#TInfoAssure_CodAssDeb Class_LigneTitreAller_xsd.tmp#TInfoAssure_CodAyantDroit Class_LigneTitreAller_xsd.tmp#TInfoAssure
Type TInfoAssure
Properties
content: complex
minOccurs: 0
Model CodAssDeb , CodAyantDroit{0,1}
Children CodAssDeb, CodAyantDroit
Instance

<InfoAssure>
  <CodAssDeb V="">{1,1}</CodAssDeb>
  <CodAyantDroit V="">{0,1}</CodAyantDroit>
</InfoAssure>
Source

<xs:element name="InfoAssure" type="TInfoAssure" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Informations Assuré</xs:documentation>
  </xs:annotation>
</xs:element>
Element TInfoAssure / CodAssDeb
Namespace No namespace
Diagram
Diagram CommunRecette_xsd.tmp#TCodAssDeb_V CommunRecette_xsd.tmp#TCodAssDeb
Type TCodAssDeb
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="CodAssDeb" type="TCodAssDeb"/>
Element TInfoAssure / CodAyantDroit
Namespace No namespace
Diagram
Diagram CommunRecette_xsd.tmp#TCodAyantDroit_V CommunRecette_xsd.tmp#TCodAyantDroit
Type TCodAyantDroit
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="CodAyantDroit" type="TCodAyantDroit" minOccurs="0"/>
Element TBlocLignePiece / RattachPiece
Namespace No namespace
Annotations

Rattachement Pièce
Diagram
Diagram Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TRattachPiece_NatPceOrig Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TRattachPiece_ExerRat Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TRattachPiece_IdPceOrig Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TRattachPiece_IdLigneOrig Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TRattachPiece
Type TRattachPiece
Properties
content: complex
minOccurs: 0
Model NatPceOrig , ExerRat , IdPceOrig , IdLigneOrig{0,1}
Children ExerRat, IdLigneOrig, IdPceOrig, NatPceOrig
Instance

<RattachPiece>
  <NatPceOrig V="">{1,1}</NatPceOrig>
  <ExerRat V="">{1,1}</ExerRat>
  <IdPceOrig V="">{1,1}</IdPceOrig>
  <IdLigneOrig V="">{0,1}</IdLigneOrig>
</RattachPiece>
Source

<xs:element name="RattachPiece" type="TRattachPiece" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Rattachement Pièce</xs:documentation>
  </xs:annotation>
</xs:element>
Element TRattachPiece / NatPceOrig
Namespace No namespace
Diagram
Diagram CommunRecette_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TNatPceOrig_V CommunRecette_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TNatPceOrig
Type TNatPceOrig
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="NatPceOrig" type="TNatPceOrig"/>
Element TRattachPiece / ExerRat
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Annee_V Simple_Type_xsd.tmp#Base_Annee
Type Base_Annee
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Annee required
Source

<xs:element name="ExerRat" type="cm:Base_Annee"/>
Element TRattachPiece / IdPceOrig
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num13_V Simple_Type_xsd.tmp#Base_Num13
Type Base_Num13
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Num13 required
Source

<xs:element name="IdPceOrig" type="cm:Base_Num13"/>
Element TRattachPiece / IdLigneOrig
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num6_V Simple_Type_xsd.tmp#Base_Num6
Type Base_Num6
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num6 required
Source

<xs:element name="IdLigneOrig" type="cm:Base_Num6" minOccurs="0"/>
Element TBlocLignePiece / LiensIdent
Namespace No namespace
Annotations

Liens identifiants
Diagram
Diagram Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdEncaissement Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdConv Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdMarche Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdCaution Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdEmpruntOrdo Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdActif Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdRegie Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent
Type TLiensIdent
Properties
content: complex
minOccurs: 0
Model IdEncaissement{0,1} , IdConv{0,1} , IdMarche{0,1} , IdCaution{0,1} , IdEmpruntOrdo{0,1} , IdActif{0,1} , IdRegie{0,1}
Children IdActif, IdCaution, IdConv, IdEmpruntOrdo, IdEncaissement, IdMarche, IdRegie
Instance

<LiensIdent>
  <IdEncaissement V="">{0,1}</IdEncaissement>
  <IdConv V="">{0,1}</IdConv>
  <IdMarche V="">{0,1}</IdMarche>
  <IdCaution V="">{0,1}</IdCaution>
  <IdEmpruntOrdo V="">{0,1}</IdEmpruntOrdo>
  <IdActif V="">{0,1}</IdActif>
  <IdRegie V="">{0,1}</IdRegie>
</LiensIdent>
Source

<xs:element name="LiensIdent" type="TLiensIdent" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Liens identifiants</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLiensIdent / IdEncaissement
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num12_V Simple_Type_xsd.tmp#Base_Num12
Type Base_Num12
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num12 required
Source

<xs:element name="IdEncaissement" type="cm:Base_Num12" minOccurs="0"/>
Element TLiensIdent / IdConv
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte25_V Simple_Type_xsd.tmp#Base_Texte25
Type Base_Texte25
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte25 required
Source

<xs:element name="IdConv" type="cm:Base_Texte25" minOccurs="0"/>
Element TLiensIdent / IdMarche
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte30_V Simple_Type_xsd.tmp#Base_Texte30
Type Base_Texte30
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte30 required
Source

<xs:element name="IdMarche" type="cm:Base_Texte30" minOccurs="0"/>
Element TLiensIdent / IdCaution
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte25_V Simple_Type_xsd.tmp#Base_Texte25
Type Base_Texte25
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte25 required
Source

<xs:element name="IdCaution" type="cm:Base_Texte25" minOccurs="0"/>
Element TLiensIdent / IdEmpruntOrdo
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte24_V Simple_Type_xsd.tmp#Base_Texte24
Type Base_Texte24
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte24 required
Source

<xs:element name="IdEmpruntOrdo" type="cm:Base_Texte24" minOccurs="0"/>
Element TLiensIdent / IdActif
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte25_V Simple_Type_xsd.tmp#Base_Texte25
Type Base_Texte25
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte25 required
Source

<xs:element name="IdActif" type="cm:Base_Texte25" minOccurs="0"/>
Element TLiensIdent / IdRegie
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte10_V Simple_Type_xsd.tmp#Base_Texte10
Type Base_Texte10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte10 required
Source

<xs:element name="IdRegie" type="cm:Base_Texte10" minOccurs="0"/>
Complex Type TBlocLignePiece
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/recette/r0/aller
Diagram
Diagram Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TBlocLignePiece_InfoLignePiece Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TBlocLignePiece_InfoPrelevement Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TBlocLignePiece_InfoAssure Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TBlocLignePiece_RattachPiece Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TBlocLignePiece_LiensIdent
Used by
Element TLigneDePiece/BlocLignePiece
Model InfoLignePiece , InfoPrelevement{0,1} , InfoAssure{0,1} , RattachPiece{0,1} , LiensIdent{0,1}
Children InfoAssure, InfoLignePiece, InfoPrelevement, LiensIdent, RattachPiece
Source

<xs:complexType name="TBlocLignePiece">
  <xs:sequence>
    <xs:element name="InfoLignePiece" type="TInfoLignePiece">
      <xs:annotation>
        <xs:documentation>Informations Ligne de Piece</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="InfoPrelevement" type="TInfoPrelevement" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Informations Prélèvement</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="InfoAssure" type="TInfoAssure" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Informations Assuré</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="RattachPiece" type="TRattachPiece" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Rattachement Pièce</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="LiensIdent" type="TLiensIdent" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Liens identifiants</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type TInfoLignePiece
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/recette/r0/aller
Diagram
Diagram Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_IdLigne Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_ObjLignePce Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_CodProdLoc Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_FinGeo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_CodEtGeo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_Nature Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_Fonction Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_Operation Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_CptAna Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_TxTva Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_Majo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_DteMajo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_TxMajo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_CpteTiers Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_TvaIntraCom Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_MtHT Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_MtTVA Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_MtNonMajo Class_LigneTitreAller_xsd.tmp#TInfoLignePiece_PJRef
Used by
Model IdLigne , ObjLignePce{0,1} , CodProdLoc{0,1} , FinGeo{0,1} , CodEtGeo{0,1} , Nature , Fonction{0,1} , Operation{0,1} , CptAna{0,1} , TxTva{0,1} , Majo , DteMajo{0,1} , TxMajo{0,1} , CpteTiers{0,1} , TvaIntraCom , MtHT , MtTVA{0,1} , MtNonMajo{0,1} , PJRef*
Children CodEtGeo, CodProdLoc, CptAna, CpteTiers, DteMajo, FinGeo, Fonction, IdLigne, Majo, MtHT, MtNonMajo, MtTVA, Nature, ObjLignePce, Operation, PJRef, TvaIntraCom, TxMajo, TxTva
Source

<xs:complexType name="TInfoLignePiece">
  <xs:sequence>
    <xs:element name="IdLigne" type="cm:Base_Num6"/>
    <xs:element name="ObjLignePce" type="cm:Base_Texte160" minOccurs="0"/>
    <xs:element name="CodProdLoc" type="cm:Base_Alphanum4" minOccurs="0"/>
    <xs:element name="FinGeo" type="cm:Base_Num9" minOccurs="0"/>
    <xs:element name="CodEtGeo" type="cm:Base_Alphanum3" minOccurs="0"/>
    <xs:element name="Nature" type="cm:Base_Texte12"/>
    <xs:element name="Fonction" type="cm:Base_Num10" minOccurs="0"/>
    <xs:element name="Operation" type="cm:Base_Num10" minOccurs="0"/>
    <xs:element name="CptAna" type="cm:Base_Alphanum10" minOccurs="0"/>
    <xs:element name="TxTva" type="cm:Base_Taux" minOccurs="0"/>
    <xs:element name="Majo" type="cm:Base_Booleen"/>
    <xs:element name="DteMajo" type="cm:Base_Date" minOccurs="0"/>
    <xs:element name="TxMajo" type="cm:Base_Taux" minOccurs="0"/>
    <xs:element name="CpteTiers" type="cm:Base_Texte12" minOccurs="0"/>
    <xs:element name="TvaIntraCom" type="cm:Base_Booleen"/>
    <xs:element name="MtHT" type="cm:Base_Montant"/>
    <xs:element name="MtTVA" type="cm:Base_Montant" minOccurs="0"/>
    <xs:element name="MtNonMajo" type="cm:Base_Montant" minOccurs="0"/>
    <xs:element name="PJRef" type="cm:TPJReference" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Complex Type TInfoPrelevement
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/recette/r0/aller
Diagram
Diagram Class_LigneTitreAller_xsd.tmp#TInfoPrelevement_NatPrel Class_LigneTitreAller_xsd.tmp#TInfoPrelevement_PerPrel Class_LigneTitreAller_xsd.tmp#TInfoPrelevement_DtePrel Class_LigneTitreAller_xsd.tmp#TInfoPrelevement_MtPrel
Used by
Model NatPrel , PerPrel , DtePrel , MtPrel
Children DtePrel, MtPrel, NatPrel, PerPrel
Source

<xs:complexType name="TInfoPrelevement">
  <xs:sequence>
    <xs:element name="NatPrel" type="TNatPrel"/>
    <xs:element name="PerPrel" type="TPerPrel"/>
    <xs:element name="DtePrel" type="cm:Base_Date"/>
    <xs:element name="MtPrel" type="cm:Base_Montant"/>
  </xs:sequence>
</xs:complexType>
Complex Type TInfoAssure
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/recette/r0/aller
Diagram
Diagram Class_LigneTitreAller_xsd.tmp#TInfoAssure_CodAssDeb Class_LigneTitreAller_xsd.tmp#TInfoAssure_CodAyantDroit
Used by
Model CodAssDeb , CodAyantDroit{0,1}
Children CodAssDeb, CodAyantDroit
Source

<xs:complexType name="TInfoAssure">
  <xs:sequence>
    <xs:element name="CodAssDeb" type="TCodAssDeb"/>
    <xs:element name="CodAyantDroit" type="TCodAyantDroit" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type TRattachPiece
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/recette/r0/aller
Diagram
Diagram Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TRattachPiece_NatPceOrig Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TRattachPiece_ExerRat Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TRattachPiece_IdPceOrig Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TRattachPiece_IdLigneOrig
Used by
Element TBlocLignePiece/RattachPiece
Model NatPceOrig , ExerRat , IdPceOrig , IdLigneOrig{0,1}
Children ExerRat, IdLigneOrig, IdPceOrig, NatPceOrig
Source

<xs:complexType name="TRattachPiece">
  <xs:sequence>
    <xs:element name="NatPceOrig" type="TNatPceOrig"/>
    <xs:element name="ExerRat" type="cm:Base_Annee"/>
    <xs:element name="IdPceOrig" type="cm:Base_Num13"/>
    <xs:element name="IdLigneOrig" type="cm:Base_Num6" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type TLiensIdent
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/recette/r0/aller
Diagram
Diagram Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdEncaissement Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdConv Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdMarche Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdCaution Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdEmpruntOrdo Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdActif Class_LigneTitreAller_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_recette_r0_aller_TLiensIdent_IdRegie
Used by
Element TBlocLignePiece/LiensIdent
Model IdEncaissement{0,1} , IdConv{0,1} , IdMarche{0,1} , IdCaution{0,1} , IdEmpruntOrdo{0,1} , IdActif{0,1} , IdRegie{0,1}
Children IdActif, IdCaution, IdConv, IdEmpruntOrdo, IdEncaissement, IdMarche, IdRegie
Source

<xs:complexType name="TLiensIdent">
  <xs:sequence>
    <xs:element name="IdEncaissement" type="cm:Base_Num12" minOccurs="0"/>
    <xs:element name="IdConv" type="cm:Base_Texte25" minOccurs="0"/>
    <xs:element name="IdMarche" type="cm:Base_Texte30" minOccurs="0"/>
    <xs:element name="IdCaution" type="cm:Base_Texte25" minOccurs="0"/>
    <xs:element name="IdEmpruntOrdo" type="cm:Base_Texte24" minOccurs="0"/>
    <xs:element name="IdActif" type="cm:Base_Texte25" minOccurs="0"/>
    <xs:element name="IdRegie" type="cm:Base_Texte10" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
