Included schema Class_Inventaire.xsd
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/Rev0/aller
Properties
attribute form default: unqualified
element form default: unqualified

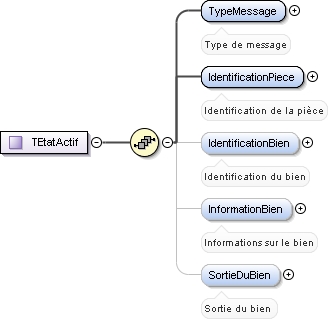

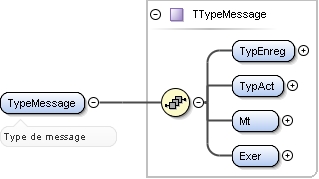

Element TEtatActif / TypeMessage
Namespace No namespace
Annotations

Type de message
Diagram
Diagram Class_Inventaire_xsd.tmp#TTypeMessage_TypEnreg Class_Inventaire_xsd.tmp#TTypeMessage_TypAct Class_Inventaire_xsd.tmp#TTypeMessage_Mt Class_Inventaire_xsd.tmp#TTypeMessage_Exer Class_Inventaire_xsd.tmp#TTypeMessage

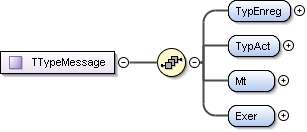

Type TTypeMessage
Properties
content: complex
Model TypEnreg , TypAct , Mt , Exer
Children Exer, Mt, TypAct, TypEnreg
Instance

<TypeMessage>
  <TypEnreg V="">{1,1}</TypEnreg>
  <TypAct V="">{1,1}</TypAct>
  <Mt V="">{1,1}</Mt>
  <Exer V="">{1,1}</Exer>
</TypeMessage>
Source

<xs:element name="TypeMessage" type="TTypeMessage">
  <xs:annotation>
    <xs:documentation>Type de message</xs:documentation>
  </xs:annotation>
</xs:element>
Element TTypeMessage / TypEnreg
Namespace No namespace
Diagram
Diagram CommunInventaire_xsd.tmp#TTypEnreg_V CommunInventaire_xsd.tmp#TTypEnreg
Type TTypEnreg
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="TypEnreg" type="TTypEnreg"/>
Element TTypeMessage / TypAct
Namespace No namespace
Diagram
Diagram CommunInventaire_xsd.tmp#TTypAct_V CommunInventaire_xsd.tmp#TTypAct
Type TTypAct
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="TypAct" type="TTypAct"/>
Element TTypeMessage / Mt
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Montant_V Simple_Type_xsd.tmp#Base_Montant
Type Base_Montant
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="Mt" type="cm:Base_Montant"/>
Element TTypeMessage / Exer
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Annee_V Simple_Type_xsd.tmp#Base_Annee
Type Base_Annee
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Annee required
Source

<xs:element name="Exer" type="cm:Base_Annee"/>
Element TEtatActif / IdentificationPiece
Namespace No namespace
Annotations

Identification de la pièce
Diagram
Diagram Class_Inventaire_xsd.tmp#TIdentPiece_IdPce Class_Inventaire_xsd.tmp#TIdentPiece_IdLigne Class_Inventaire_xsd.tmp#TIdentPiece_Nature Class_Inventaire_xsd.tmp#TIdentPiece_Fonction Class_Inventaire_xsd.tmp#TIdentPiece_Operation Class_Inventaire_xsd.tmp#TIdentPiece
Type TIdentPiece
Properties
content: complex
Model IdPce , IdLigne , Nature , Fonction{0,1} , Operation{0,1}
Children Fonction, IdLigne, IdPce, Nature, Operation
Instance

<IdentificationPiece>
  <IdPce V="">{1,1}</IdPce>
  <IdLigne V="">{1,1}</IdLigne>
  <Nature V="">{1,1}</Nature>
  <Fonction V="">{0,1}</Fonction>
  <Operation V="">{0,1}</Operation>
</IdentificationPiece>
Source

<xs:element name="IdentificationPiece" type="TIdentPiece">
  <xs:annotation>
    <xs:documentation>Identification de la pièce</xs:documentation>
  </xs:annotation>
</xs:element>
Element TIdentPiece / IdPce
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num8_V Simple_Type_xsd.tmp#Base_Num8
Type Base_Num8
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Num8 required
Source

<xs:element name="IdPce" type="cm:Base_Num8"/>
Element TIdentPiece / IdLigne
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num6_V Simple_Type_xsd.tmp#Base_Num6
Type Base_Num6
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Num6 required
Source

<xs:element name="IdLigne" type="cm:Base_Num6"/>
Element TIdentPiece / Nature
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte12_V Simple_Type_xsd.tmp#Base_Texte12
Type Base_Texte12
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Texte12 required
Source

<xs:element name="Nature" type="cm:Base_Texte12"/>
Element TIdentPiece / Fonction
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num10_V Simple_Type_xsd.tmp#Base_Num10
Type Base_Num10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num10 required
Source

<xs:element name="Fonction" type="cm:Base_Num10" minOccurs="0"/>
Element TIdentPiece / Operation
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num10_V Simple_Type_xsd.tmp#Base_Num10
Type Base_Num10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num10 required
Source

<xs:element name="Operation" type="cm:Base_Num10" minOccurs="0"/>
Element TEtatActif / IdentificationBien
Namespace No namespace
Annotations

Identification du bien
Diagram
Diagram Class_Inventaire_xsd.tmp#TIdentificationBien_NumInvent Class_Inventaire_xsd.tmp#TIdentificationBien_Affect Class_Inventaire_xsd.tmp#TIdentificationBien
Type TIdentificationBien
Properties
content: complex
minOccurs: 0
Model NumInvent{0,1} , Affect{0,1}
Children Affect, NumInvent
Instance

<IdentificationBien>
  <NumInvent V="">{0,1}</NumInvent>
  <Affect V="">{0,1}</Affect>
</IdentificationBien>
Source

<xs:element name="IdentificationBien" type="TIdentificationBien" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Identification du bien</xs:documentation>
  </xs:annotation>
</xs:element>
Element TIdentificationBien / NumInvent
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte25_V Simple_Type_xsd.tmp#Base_Texte25
Type Base_Texte25
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte25 required
Source

<xs:element name="NumInvent" type="cm:Base_Texte25" minOccurs="0"/>
Element TIdentificationBien / Affect
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte10_V Simple_Type_xsd.tmp#Base_Texte10
Type Base_Texte10
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte10 required
Source

<xs:element name="Affect" type="cm:Base_Texte10" minOccurs="0"/>
Element TEtatActif / InformationBien
Namespace No namespace
Annotations

Informations sur le bien
Diagram

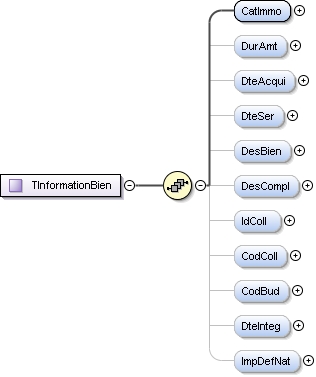

Diagram Class_Inventaire_xsd.tmp#TInformationBien_CatImmo Class_Inventaire_xsd.tmp#TInformationBien_DurAmt Class_Inventaire_xsd.tmp#TInformationBien_DteAcqui Class_Inventaire_xsd.tmp#TInformationBien_DteSer Class_Inventaire_xsd.tmp#TInformationBien_DesBien Class_Inventaire_xsd.tmp#TInformationBien_DesCompl Class_Inventaire_xsd.tmp#TInformationBien_IdColl Class_Inventaire_xsd.tmp#TInformationBien_CodColl Class_Inventaire_xsd.tmp#TInformationBien_CodBud Class_Inventaire_xsd.tmp#TInformationBien_DteInteg Class_Inventaire_xsd.tmp#TInformationBien_ImpDefNat Class_Inventaire_xsd.tmp#TInformationBien
Type TInformationBien
Properties
content: complex
minOccurs: 0
Model CatImmo , DurAmt{0,1} , DteAcqui{0,1} , DteSer{0,1} , DesBien{0,1} , DesCompl{0,1} , IdColl{0,1} , CodColl{0,1} , CodBud{0,1} , DteInteg{0,1} , ImpDefNat{0,1}
Children CatImmo, CodBud, CodColl, DesBien, DesCompl, DteAcqui, DteInteg, DteSer, DurAmt, IdColl, ImpDefNat
Instance

<InformationBien>
  <CatImmo V="">{1,1}</CatImmo>
  <DurAmt V="">{0,1}</DurAmt>
  <DteAcqui V="">{0,1}</DteAcqui>
  <DteSer V="">{0,1}</DteSer>
  <DesBien V="">{0,1}</DesBien>
  <DesCompl V="">{0,1}</DesCompl>
  <IdColl V="">{0,1}</IdColl>
  <CodColl V="">{0,1}</CodColl>
  <CodBud V="">{0,1}</CodBud>
  <DteInteg V="">{0,1}</DteInteg>
  <ImpDefNat V="">{0,1}</ImpDefNat>
</InformationBien>
Source

<xs:element name="InformationBien" type="TInformationBien" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Informations sur le bien</xs:documentation>
  </xs:annotation>
</xs:element>
Element TInformationBien / CatImmo
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte6_V Simple_Type_xsd.tmp#Base_Texte6
Type Base_Texte6
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Texte6 required
Source

<xs:element name="CatImmo" type="cm:Base_Texte6"/>
Element TInformationBien / DurAmt
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num3_V Simple_Type_xsd.tmp#Base_Num3
Type Base_Num3
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num3 required
Source

<xs:element name="DurAmt" type="cm:Base_Num3" minOccurs="0"/>
Element TInformationBien / DteAcqui
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DteAcqui" type="cm:Base_Date" minOccurs="0"/>
Element TInformationBien / DteSer
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DteSer" type="cm:Base_Date" minOccurs="0"/>
Element TInformationBien / DesBien
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte250_V Simple_Type_xsd.tmp#Base_Texte250
Type Base_Texte250
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte250 required
Source

<xs:element name="DesBien" type="cm:Base_Texte250" minOccurs="0"/>
Element TInformationBien / DesCompl
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte100_V Simple_Type_xsd.tmp#Base_Texte100
Type Base_Texte100
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte100 required
Source

<xs:element name="DesCompl" type="cm:Base_Texte100" minOccurs="0"/>
Element TInformationBien / IdColl
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Num14_V Simple_Type_xsd.tmp#Base_Num14
Type Base_Num14
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Num14 required
Source

<xs:element name="IdColl" type="cm:Base_Num14" minOccurs="0"/>
Element TInformationBien / CodColl
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Alphanum3_V Simple_Type_xsd.tmp#Base_Alphanum3
Type Base_Alphanum3
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Alphanum3 required
Source

<xs:element name="CodColl" type="cm:Base_Alphanum3" minOccurs="0"/>
Element TInformationBien / CodBud
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Alphanum2_V Simple_Type_xsd.tmp#Base_Alphanum2
Type Base_Alphanum2
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Alphanum2 required
Source

<xs:element name="CodBud" type="cm:Base_Alphanum2" minOccurs="0"/>
Element TInformationBien / DteInteg
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DteInteg" type="cm:Base_Date" minOccurs="0"/>
Element TInformationBien / ImpDefNat
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte12_V Simple_Type_xsd.tmp#Base_Texte12
Type Base_Texte12
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte12 required
Source

<xs:element name="ImpDefNat" type="cm:Base_Texte12" minOccurs="0"/>
Element TEtatActif / SortieDuBien
Namespace No namespace
Annotations

Sortie du bien
Diagram
Diagram Class_Inventaire_xsd.tmp#TSortieDuBien_ModSort Class_Inventaire_xsd.tmp#TSortieDuBien_DteSort Class_Inventaire_xsd.tmp#TSortieDuBien
Type TSortieDuBien
Properties
content: complex
minOccurs: 0
Model ModSort , DteSort
Children DteSort, ModSort
Instance

<SortieDuBien>
  <ModSort V="">{1,1}</ModSort>
  <DteSort V="">{1,1}</DteSort>
</SortieDuBien>
Source

<xs:element name="SortieDuBien" type="TSortieDuBien" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Sortie du bien</xs:documentation>
  </xs:annotation>
</xs:element>
Element TSortieDuBien / ModSort
Namespace No namespace
Diagram
Diagram CommunInventaire_xsd.tmp#TModSort_V CommunInventaire_xsd.tmp#TModSort
Type TModSort
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V restriction of xs:string required
Source

<xs:element name="ModSort" type="TModSort"/>
Element TSortieDuBien / DteSort
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Date_V Simple_Type_xsd.tmp#Base_Date
Type Base_Date
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Date required
Source

<xs:element name="DteSort" type="cm:Base_Date"/>
Complex Type TEtatActif
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/etatactif/r0/aller
Diagram
Diagram Class_Inventaire_xsd.tmp#TEtatActif_TypeMessage Class_Inventaire_xsd.tmp#TEtatActif_IdentificationPiece Class_Inventaire_xsd.tmp#TEtatActif_IdentificationBien Class_Inventaire_xsd.tmp#TEtatActif_InformationBien Class_Inventaire_xsd.tmp#TEtatActif_SortieDuBien
Used by
Model TypeMessage , IdentificationPiece , IdentificationBien{0,1} , InformationBien{0,1} , SortieDuBien{0,1}
Children IdentificationBien, IdentificationPiece, InformationBien, SortieDuBien, TypeMessage
Source

<xs:complexType name="TEtatActif">
  <xs:sequence>
    <xs:element name="TypeMessage" type="TTypeMessage">
      <xs:annotation>
        <xs:documentation>Type de message</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="IdentificationPiece" type="TIdentPiece">
      <xs:annotation>
        <xs:documentation>Identification de la pièce</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="IdentificationBien" type="TIdentificationBien" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Identification du bien</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="InformationBien" type="TInformationBien" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Informations sur le bien</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="SortieDuBien" type="TSortieDuBien" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Sortie du bien</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type TTypeMessage
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/etatactif/r0/aller
Diagram
Diagram Class_Inventaire_xsd.tmp#TTypeMessage_TypEnreg Class_Inventaire_xsd.tmp#TTypeMessage_TypAct Class_Inventaire_xsd.tmp#TTypeMessage_Mt Class_Inventaire_xsd.tmp#TTypeMessage_Exer
Used by
Model TypEnreg , TypAct , Mt , Exer
Children Exer, Mt, TypAct, TypEnreg
Source

<xs:complexType name="TTypeMessage">
  <xs:sequence>
    <xs:element name="TypEnreg" type="TTypEnreg"/>
    <xs:element name="TypAct" type="TTypAct"/>
    <xs:element name="Mt" type="cm:Base_Montant"/>
    <xs:element name="Exer" type="cm:Base_Annee"/>
  </xs:sequence>
</xs:complexType>
Complex Type TIdentPiece
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/etatactif/r0/aller
Diagram
Diagram Class_Inventaire_xsd.tmp#TIdentPiece_IdPce Class_Inventaire_xsd.tmp#TIdentPiece_IdLigne Class_Inventaire_xsd.tmp#TIdentPiece_Nature Class_Inventaire_xsd.tmp#TIdentPiece_Fonction Class_Inventaire_xsd.tmp#TIdentPiece_Operation
Used by
Model IdPce , IdLigne , Nature , Fonction{0,1} , Operation{0,1}
Children Fonction, IdLigne, IdPce, Nature, Operation
Source

<xs:complexType name="TIdentPiece">
  <xs:sequence>
    <xs:element name="IdPce" type="cm:Base_Num8"/>
    <xs:element name="IdLigne" type="cm:Base_Num6"/>
    <xs:element name="Nature" type="cm:Base_Texte12"/>
    <xs:element name="Fonction" type="cm:Base_Num10" minOccurs="0"/>
    <xs:element name="Operation" type="cm:Base_Num10" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type TIdentificationBien
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/etatactif/r0/aller
Diagram
Diagram Class_Inventaire_xsd.tmp#TIdentificationBien_NumInvent Class_Inventaire_xsd.tmp#TIdentificationBien_Affect
Used by
Model NumInvent{0,1} , Affect{0,1}
Children Affect, NumInvent
Source

<xs:complexType name="TIdentificationBien">
  <xs:sequence>
    <xs:element name="NumInvent" type="cm:Base_Texte25" minOccurs="0"/>
    <xs:element name="Affect" type="cm:Base_Texte10" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type TInformationBien
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/etatactif/r0/aller
Diagram
Diagram Class_Inventaire_xsd.tmp#TInformationBien_CatImmo Class_Inventaire_xsd.tmp#TInformationBien_DurAmt Class_Inventaire_xsd.tmp#TInformationBien_DteAcqui Class_Inventaire_xsd.tmp#TInformationBien_DteSer Class_Inventaire_xsd.tmp#TInformationBien_DesBien Class_Inventaire_xsd.tmp#TInformationBien_DesCompl Class_Inventaire_xsd.tmp#TInformationBien_IdColl Class_Inventaire_xsd.tmp#TInformationBien_CodColl Class_Inventaire_xsd.tmp#TInformationBien_CodBud Class_Inventaire_xsd.tmp#TInformationBien_DteInteg Class_Inventaire_xsd.tmp#TInformationBien_ImpDefNat
Used by
Model CatImmo , DurAmt{0,1} , DteAcqui{0,1} , DteSer{0,1} , DesBien{0,1} , DesCompl{0,1} , IdColl{0,1} , CodColl{0,1} , CodBud{0,1} , DteInteg{0,1} , ImpDefNat{0,1}
Children CatImmo, CodBud, CodColl, DesBien, DesCompl, DteAcqui, DteInteg, DteSer, DurAmt, IdColl, ImpDefNat
Source

<xs:complexType name="TInformationBien">
  <xs:sequence>
    <xs:element name="CatImmo" type="cm:Base_Texte6"/>
    <xs:element name="DurAmt" type="cm:Base_Num3" minOccurs="0"/>
    <xs:element name="DteAcqui" type="cm:Base_Date" minOccurs="0"/>
    <xs:element name="DteSer" type="cm:Base_Date" minOccurs="0"/>
    <xs:element name="DesBien" type="cm:Base_Texte250" minOccurs="0"/>
    <xs:element name="DesCompl" type="cm:Base_Texte100" minOccurs="0"/>
    <xs:element name="IdColl" type="cm:Base_Num14" minOccurs="0"/>
    <xs:element name="CodColl" type="cm:Base_Alphanum3" minOccurs="0"/>
    <xs:element name="CodBud" type="cm:Base_Alphanum2" minOccurs="0"/>
    <xs:element name="DteInteg" type="cm:Base_Date" minOccurs="0"/>
    <xs:element name="ImpDefNat" type="cm:Base_Texte12" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type TSortieDuBien
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/etatactif/r0/aller
Diagram
Diagram Class_Inventaire_xsd.tmp#TSortieDuBien_ModSort Class_Inventaire_xsd.tmp#TSortieDuBien_DteSort
Used by
Model ModSort , DteSort
Children DteSort, ModSort
Source

<xs:complexType name="TSortieDuBien">
  <xs:sequence>
    <xs:element name="ModSort" type="TModSort"/>
    <xs:element name="DteSort" type="cm:Base_Date"/>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
