Included schema Class_RepartitionBudget.xsd
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/paye_1_1
Properties
attribute form default: unqualified
element form default: unqualified
Element TRepartitionBudget / CodeBudget
Namespace No namespace
Annotations

Code du budget de comptabilisation
Diagram
Diagram Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Texte24_V Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Texte24
Type Base_Texte24
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Texte24 required
Source

<xs:element name="CodeBudget" type="cm:Base_Texte24">
  <xs:annotation>
    <xs:documentation>Code du budget de comptabilisation</xs:documentation>
  </xs:annotation>
</xs:element>
Element TRepartitionBudget / Taux
Namespace No namespace
Annotations

(si répartitionau prorata)
Diagram
Diagram Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Taux_V Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Taux
Type Base_Taux
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Taux required
Source

<xs:element name="Taux" type="cm:Base_Taux">
  <xs:annotation>
    <xs:documentation>(si répartitionau prorata)</xs:documentation>
  </xs:annotation>
</xs:element>
Element TRepartitionBudget / Mt
Namespace No namespace
Annotations

(si répartition forfaitaire)
Diagram
Diagram Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Montant_V Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Montant
Type Base_Montant
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="Mt" type="cm:Base_Montant">
  <xs:annotation>
    <xs:documentation>(si répartition forfaitaire)</xs:documentation>
  </xs:annotation>
</xs:element>

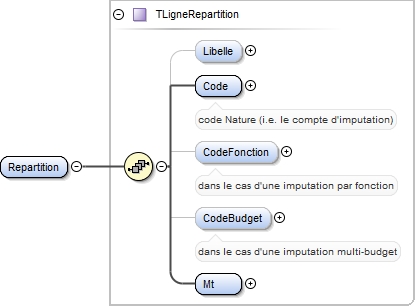

Element TRepartitionParNature / Repartition
Namespace No namespace
Diagram
Diagram Class_RepartitionBudget_xsd.tmp#TLigneRepartition_Libelle Class_RepartitionBudget_xsd.tmp#TLigneRepartition_Code Class_RepartitionBudget_xsd.tmp#TLigneRepartition_CodeFonction Class_RepartitionBudget_xsd.tmp#TLigneRepartition_CodeBudget Class_RepartitionBudget_xsd.tmp#TLigneRepartition_Mt Class_RepartitionBudget_xsd.tmp#TLigneRepartition
Type TLigneRepartition
Properties
content: complex
maxOccurs: unbounded
Model Libelle{0,1} , Code , CodeFonction{0,1} , CodeBudget{0,1} , Mt
Children Code, CodeBudget, CodeFonction, Libelle, Mt
Instance

<Repartition>
  <Libelle V="">{0,1}</Libelle>
  <Code V="">{1,1}</Code>
  <CodeFonction V="">{0,1}</CodeFonction>
  <CodeBudget V="">{0,1}</CodeBudget>
  <Mt V="">{1,1}</Mt>
</Repartition>
Source

<xs:element name="Repartition" type="TLigneRepartition" maxOccurs="unbounded"/>
Element TLigneRepartition / Libelle
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#Base_Texte100_V Simple_Type_xsd.tmp#Base_Texte100
Type Base_Texte100
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte100 required
Source

<xs:element name="Libelle" type="cm:Base_Texte100" minOccurs="0"/>
Element TLigneRepartition / Code
Namespace No namespace
Annotations

code Nature (i.e. le compte d'imputation)
Diagram
Diagram Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Texte24_V Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Texte24
Type Base_Texte24
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Texte24 required
Source

<xs:element name="Code" type="cm:Base_Texte24">
  <xs:annotation>
    <xs:documentation>code Nature (i.e. le compte d'imputation)</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneRepartition / CodeFonction
Namespace No namespace
Annotations

dans le cas d'une imputation par fonction
Diagram
Diagram Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Texte24_V Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Texte24
Type Base_Texte24
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte24 required
Source

<xs:element name="CodeFonction" type="cm:Base_Texte24" minOccurs="0">
  <xs:annotation>
    <xs:documentation>dans le cas d'une imputation par fonction</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneRepartition / CodeBudget
Namespace No namespace
Annotations

dans le cas d'une imputation multi-budget
Diagram
Diagram Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Texte24_V Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Texte24
Type Base_Texte24
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
V V_Texte24 required
Source

<xs:element name="CodeBudget" type="cm:Base_Texte24" minOccurs="0">
  <xs:annotation>
    <xs:documentation>dans le cas d'une imputation multi-budget</xs:documentation>
  </xs:annotation>
</xs:element>
Element TLigneRepartition / Mt
Namespace No namespace
Diagram
Diagram Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Montant_V Simple_Type_xsd.tmp#http___www.minefi.gouv.fr_cp_helios_pes_v2_commun_Base_Montant
Type Base_Montant
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
V V_Montant required
Source

<xs:element name="Mt" type="cm:Base_Montant"/>

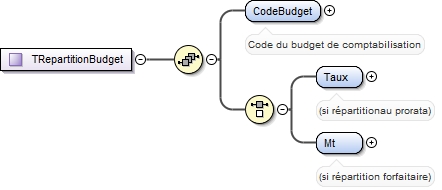

Complex Type TRepartitionBudget
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/paye_1_1
Diagram
Diagram Class_RepartitionBudget_xsd.tmp#TRepartitionBudget_CodeBudget Class_RepartitionBudget_xsd.tmp#TRepartitionBudget_Taux Class_RepartitionBudget_xsd.tmp#TRepartitionBudget_Mt
Used by
Model CodeBudget , (Taux | Mt)
Children CodeBudget, Mt, Taux
Source

<xs:complexType name="TRepartitionBudget">
  <xs:sequence>
    <xs:element name="CodeBudget" type="cm:Base_Texte24">
      <xs:annotation>
        <xs:documentation>Code du budget de comptabilisation</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:choice>
      <xs:element name="Taux" type="cm:Base_Taux">
        <xs:annotation>
          <xs:documentation>(si répartitionau prorata)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="Mt" type="cm:Base_Montant">
        <xs:annotation>
          <xs:documentation>(si répartition forfaitaire)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:choice>
  </xs:sequence>
</xs:complexType>
Complex Type TRepartitionParNature
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/paye_1_1
Diagram
Diagram Class_RepartitionBudget_xsd.tmp#TRepartitionParNature_Repartition
Used by
Model Repartition+
Children Repartition
Source

<xs:complexType name="TRepartitionParNature">
  <xs:sequence>
    <xs:element name="Repartition" type="TLigneRepartition" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

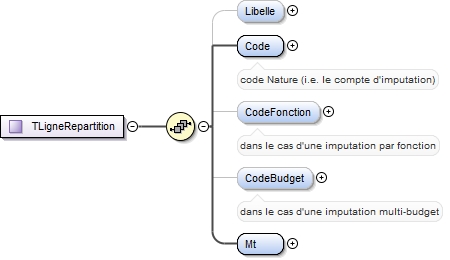

Complex Type TLigneRepartition
Namespace http://www.minefi.gouv.fr/cp/helios/pes_v2/paye_1_1
Diagram
Diagram Class_RepartitionBudget_xsd.tmp#TLigneRepartition_Libelle Class_RepartitionBudget_xsd.tmp#TLigneRepartition_Code Class_RepartitionBudget_xsd.tmp#TLigneRepartition_CodeFonction Class_RepartitionBudget_xsd.tmp#TLigneRepartition_CodeBudget Class_RepartitionBudget_xsd.tmp#TLigneRepartition_Mt
Used by
Model Libelle{0,1} , Code , CodeFonction{0,1} , CodeBudget{0,1} , Mt
Children Code, CodeBudget, CodeFonction, Libelle, Mt
Source

<xs:complexType name="TLigneRepartition">
  <xs:sequence>
    <xs:element name="Libelle" type="cm:Base_Texte100" minOccurs="0"/>
    <xs:element name="Code" type="cm:Base_Texte24">
      <xs:annotation>
        <xs:documentation>code Nature (i.e. le compte d'imputation)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CodeFonction" type="cm:Base_Texte24" minOccurs="0">
      <xs:annotation>
        <xs:documentation>dans le cas d'une imputation par fonction</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="CodeBudget" type="cm:Base_Texte24" minOccurs="0">
      <xs:annotation>
        <xs:documentation>dans le cas d'une imputation multi-budget</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Mt" type="cm:Base_Montant"/>
  </xs:sequence>
</xs:complexType>
