Schema documentation for

Showing:

Diagrams

Instances

Properties

Source

Used by

Included schema Class_PESCarteAchat.xsd

Namespace

http://www.minefi.gouv.fr/cp/helios/pes_v2/facture

Properties

attribute form default:	unqualified
element form default:	unqualified

Element TPES_CarteAchat / PESFacture

Namespace

No namespace

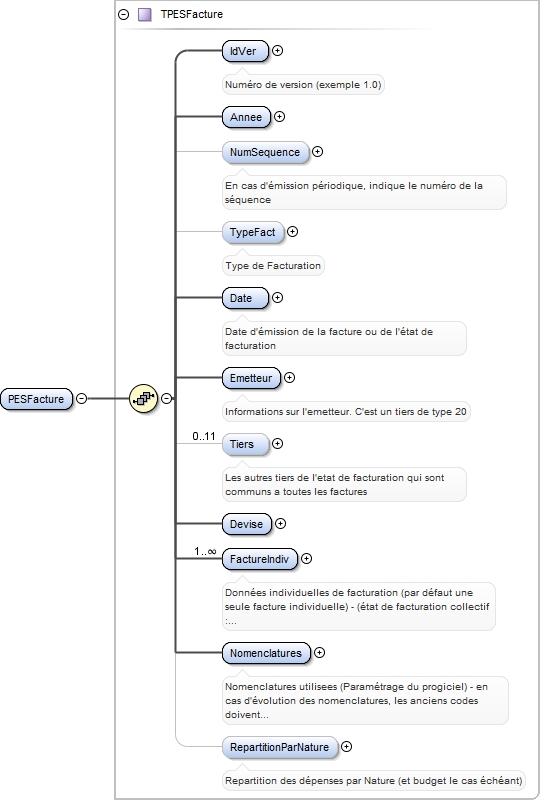

Diagram

Type

TPESFacture

Properties

content:	complex
maxOccurs:	unbounded

Model

IdVer , Annee , NumSequence{0,1} , TypeFact{0,1} , Date , Emetteur , Tiers{0,11} , Devise , FactureIndiv+ , Nomenclatures , RepartitionParNature{0,1}

Children

Annee, Date, Devise, Emetteur, FactureIndiv, IdVer, Nomenclatures, NumSequence, RepartitionParNature, Tiers, TypeFact

Instance

<PESFacture>
  <IdVer V="">{1,1}</IdVer>
  <Annee V="">{1,1}</Annee>
  <NumSequence V="">{0,1}</NumSequence>
  <TypeFact V="">{0,1}</TypeFact>
  <Date V="">{1,1}</Date>
  <Emetteur>{1,1}</Emetteur>
  <Tiers>{0,11}</Tiers>
  <Devise V="">{1,1}</Devise>
  <FactureIndiv>{1,unbounded}</FactureIndiv>
  <Nomenclatures>{1,1}</Nomenclatures>
  <RepartitionParNature>{0,1}</RepartitionParNature>
</PESFacture>

Source

<xs:element name="PESFacture" type="TPESFacture" maxOccurs="unbounded"/>

Complex Type TPES_CarteAchat

Namespace

http://www.minefi.gouv.fr/cp/helios/pes_v2/facture

Diagram

Used by

Element

PES_ReleveCarteAchat/PES_CarteAchat

Model

PESFacture+

Children

PESFacture

Source

<xs:complexType name="TPES_CarteAchat">
  <xs:sequence>
    <xs:element name="PESFacture" type="TPESFacture" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
