Schema documentation for

Showing:

Attributes

Diagrams

Facets

Instances

Properties

Source

Used by

Imported schema XAdES-core-schema.xsd

Namespace

http://uri.etsi.org/01903/v1.1.1#

Properties

attribute form default:	unqualified
element form default:	qualified

Element Any

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

AnyType

Properties

content:	complex
mixed:	true

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Default	Use	Annotation
ANY attribute from ANY namespace

Source

<xs:element name="Any" type="AnyType"/>

Element ObjectIdentifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ObjectIdentifierType

Properties

content:

complex

Model

Identifier , Description{0,1} , DocumentationReferences{0,1}

Children

Description, DocumentationReferences, Identifier

Instance

<ObjectIdentifier xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Identifier Qualifier="">{1,1}</Identifier>
  <Description>{0,1}</Description>
  <DocumentationReferences>{0,1}</DocumentationReferences>
</ObjectIdentifier>

Source

<xs:element name="ObjectIdentifier" type="ObjectIdentifierType"/>

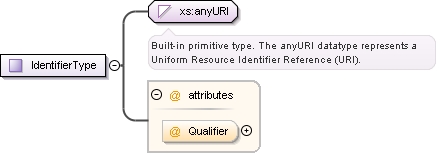

Element ObjectIdentifierType / Identifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

IdentifierType

Properties

content:

complex

Attributes

QName	Type	Fixed	Default	Use	Annotation
Qualifier	QualifierType			optional

Source

<xs:element name="Identifier" type="IdentifierType"/>

Element ObjectIdentifierType / Description

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="Description" type="xs:string" minOccurs="0"/>

Element ObjectIdentifierType / DocumentationReferences

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

DocumentationReferencesType

Properties

content:	complex
minOccurs:	0

Model

DocumentationReference

Children

DocumentationReference

Instance

<DocumentationReferences xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <DocumentationReference>{1,1}</DocumentationReference>
</DocumentationReferences>

Source

<xs:element name="DocumentationReferences" type="DocumentationReferencesType" minOccurs="0"/>

Element DocumentationReferencesType / DocumentationReference

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:anyURI

Properties

content:

simple

Source

<xs:element name="DocumentationReference" type="xs:anyURI"/>

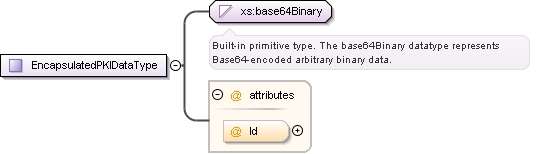

Element EncapsulatedPKIData

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

EncapsulatedPKIDataType

Properties

content:

complex

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="EncapsulatedPKIData" type="EncapsulatedPKIDataType"/>

Element TimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:

complex

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<TimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</TimeStamp>

Source

<xs:element name="TimeStamp" type="TimeStampType"/>

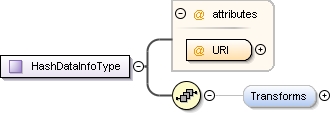

Element TimeStampType / HashDataInfo

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

HashDataInfoType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

Transforms{0,1}

Children

Transforms

Instance

<HashDataInfo URI="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Transforms>{0,1}</Transforms>
</HashDataInfo>

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			required

Source

<xs:element name="HashDataInfo" type="HashDataInfoType" minOccurs="0" maxOccurs="unbounded"/>

Element HashDataInfoType / Transforms

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ds:TransformsType

Properties

content:	complex
minOccurs:	0

Model

ds:Transform+

Children

ds:Transform

Instance

<Transforms xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <ds:Transform Algorithm="">{1,unbounded}</ds:Transform>
</Transforms>

Source

<xs:element name="Transforms" type="ds:TransformsType" minOccurs="0"/>

Element TimeStampType / EncapsulatedTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

EncapsulatedPKIDataType

Properties

content:

complex

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="EncapsulatedTimeStamp" type="EncapsulatedPKIDataType"/>

Element TimeStampType / XMLTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

AnyType

Properties

content:	complex
mixed:	true

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Default	Use	Annotation
ANY attribute from ANY namespace

Source

<xs:element name="XMLTimeStamp" type="AnyType"/>

Element QualifyingProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

QualifyingPropertiesType

Properties

content:

complex

Model

SignedProperties{0,1} , UnsignedProperties{0,1}

Children

SignedProperties, UnsignedProperties

Instance

<QualifyingProperties Id="" Target="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <SignedProperties Id="">{0,1}</SignedProperties>

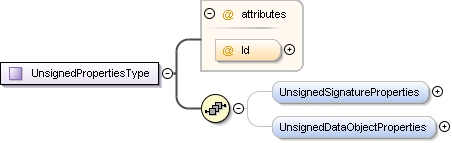

  <UnsignedProperties Id="">{0,1}</UnsignedProperties>
</QualifyingProperties>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional
Target	xs:anyURI			required

Source

<xs:element name="QualifyingProperties" type="QualifyingPropertiesType"/>

Element QualifyingPropertiesType / SignedProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignedPropertiesType

Properties

content:	complex
minOccurs:	0

Model

SignedSignatureProperties , SignedDataObjectProperties{0,1}

Children

SignedDataObjectProperties, SignedSignatureProperties

Instance

<SignedProperties Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <SignedSignatureProperties>{1,1}</SignedSignatureProperties>

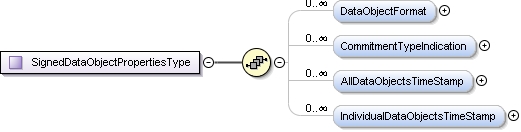

  <SignedDataObjectProperties>{0,1}</SignedDataObjectProperties>
</SignedProperties>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="SignedProperties" type="SignedPropertiesType" minOccurs="0"/>

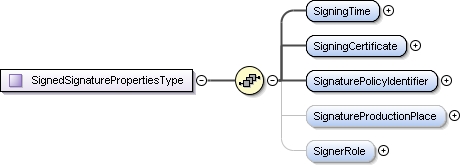

Element SignedPropertiesType / SignedSignatureProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignedSignaturePropertiesType

Properties

content:

complex

Model

SigningTime , SigningCertificate , SignaturePolicyIdentifier , SignatureProductionPlace{0,1} , SignerRole{0,1}

Children

SignaturePolicyIdentifier, SignatureProductionPlace, SignerRole, SigningCertificate, SigningTime

Instance

<SignedSignatureProperties xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <SigningTime>{1,1}</SigningTime>
  <SigningCertificate>{1,1}</SigningCertificate>
  <SignaturePolicyIdentifier>{1,1}</SignaturePolicyIdentifier>
  <SignatureProductionPlace>{0,1}</SignatureProductionPlace>
  <SignerRole>{0,1}</SignerRole>
</SignedSignatureProperties>

Source

<xs:element name="SignedSignatureProperties" type="SignedSignaturePropertiesType"/>

Element SignedSignaturePropertiesType / SigningTime

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:dateTime

Properties

content:

simple

Source

<xs:element name="SigningTime" type="xs:dateTime"/>

Element SignedSignaturePropertiesType / SigningCertificate

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CertIDListType

Properties

content:

complex

Model

Cert+

Children

Cert

Instance

<SigningCertificate xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Cert URI="">{1,unbounded}</Cert>
</SigningCertificate>

Source

<xs:element name="SigningCertificate" type="CertIDListType"/>

Element CertIDListType / Cert

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CertIDType

Properties

content:	complex
maxOccurs:	unbounded

Model

CertDigest , IssuerSerial

Children

CertDigest, IssuerSerial

Instance

<Cert URI="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CertDigest>{1,1}</CertDigest>
  <IssuerSerial>{1,1}</IssuerSerial>
</Cert>

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			optional

Source

<xs:element name="Cert" type="CertIDType" maxOccurs="unbounded"/>

Element CertIDType / CertDigest

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

DigestAlgAndValueType

Properties

content:

complex

Model

DigestMethod , DigestValue

Children

DigestMethod, DigestValue

Instance

<CertDigest xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <DigestMethod Algorithm="">{1,1}</DigestMethod>
  <DigestValue>{1,1}</DigestValue>
</CertDigest>

Source

<xs:element name="CertDigest" type="DigestAlgAndValueType"/>

Element DigestAlgAndValueType / DigestMethod

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ds:DigestMethodType

Properties

content:	complex
mixed:	true

Model

ANY element from ANY namespace OTHER than 'http://www.w3.org/2000/09/xmldsig#'

Attributes

QName	Type	Fixed	Default	Use	Annotation
Algorithm	anyURI			required

Source

<xs:element name="DigestMethod" type="ds:DigestMethodType"/>

Element DigestAlgAndValueType / DigestValue

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ds:DigestValueType

Properties

content:

simple

Source

<xs:element name="DigestValue" type="ds:DigestValueType"/>

Element CertIDType / IssuerSerial

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ds:X509IssuerSerialType

Properties

content:

complex

Model

ds:X509IssuerName , ds:X509SerialNumber

Children

ds:X509IssuerName, ds:X509SerialNumber

Instance

<IssuerSerial xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <ds:X509IssuerName>{1,1}</ds:X509IssuerName>
  <ds:X509SerialNumber>{1,1}</ds:X509SerialNumber>
</IssuerSerial>

Source

<xs:element name="IssuerSerial" type="ds:X509IssuerSerialType"/>

Element SignedSignaturePropertiesType / SignaturePolicyIdentifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignaturePolicyIdentifierType

Properties

content:

complex

Model

SignaturePolicyId | SignaturePolicyImplied

Children

SignaturePolicyId, SignaturePolicyImplied

Instance

<SignaturePolicyIdentifier xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <SignaturePolicyId>{1,1}</SignaturePolicyId>
  <SignaturePolicyImplied>{1,1}</SignaturePolicyImplied>
</SignaturePolicyIdentifier>

Source

<xs:element name="SignaturePolicyIdentifier" type="SignaturePolicyIdentifierType"/>

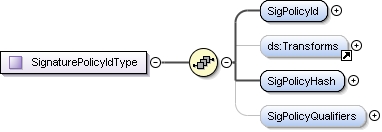

Element SignaturePolicyIdentifierType / SignaturePolicyId

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignaturePolicyIdType

Properties

content:

complex

Model

SigPolicyId , ds:Transforms{0,1} , SigPolicyHash , SigPolicyQualifiers{0,1}

Children

SigPolicyHash, SigPolicyId, SigPolicyQualifiers, ds:Transforms

Instance

<SignaturePolicyId xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <SigPolicyId>{1,1}</SigPolicyId>
  <ds:Transforms>{0,1}</ds:Transforms>
  <SigPolicyHash>{1,1}</SigPolicyHash>
  <SigPolicyQualifiers>{0,1}</SigPolicyQualifiers>
</SignaturePolicyId>

Source

<xs:element name="SignaturePolicyId" type="SignaturePolicyIdType"/>

Element SignaturePolicyIdType / SigPolicyId

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ObjectIdentifierType

Properties

content:

complex

Model

Identifier , Description{0,1} , DocumentationReferences{0,1}

Children

Description, DocumentationReferences, Identifier

Instance

<SigPolicyId xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Identifier Qualifier="">{1,1}</Identifier>
  <Description>{0,1}</Description>
  <DocumentationReferences>{0,1}</DocumentationReferences>
</SigPolicyId>

Source

<xs:element name="SigPolicyId" type="ObjectIdentifierType"/>

Element SignaturePolicyIdType / SigPolicyHash

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

DigestAlgAndValueType

Properties

content:

complex

Model

DigestMethod , DigestValue

Children

DigestMethod, DigestValue

Instance

<SigPolicyHash xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <DigestMethod Algorithm="">{1,1}</DigestMethod>
  <DigestValue>{1,1}</DigestValue>
</SigPolicyHash>

Source

<xs:element name="SigPolicyHash" type="DigestAlgAndValueType"/>

Element SignaturePolicyIdType / SigPolicyQualifiers

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SigPolicyQualifiersListType

Properties

content:	complex
minOccurs:	0

Model

SigPolicyQualifier+

Children

SigPolicyQualifier

Instance

<SigPolicyQualifiers xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <SigPolicyQualifier>{1,unbounded}</SigPolicyQualifier>
</SigPolicyQualifiers>

Source

<xs:element name="SigPolicyQualifiers" type="SigPolicyQualifiersListType" minOccurs="0"/>

Element SigPolicyQualifiersListType / SigPolicyQualifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SigPolicyQualifierType

Properties

content:	complex
maxOccurs:	unbounded

Model

SPURI

Children

SPURI

Instance

<SigPolicyQualifier xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <SPURI>{1,1}</SPURI>
</SigPolicyQualifier>

Source

<xs:element name="SigPolicyQualifier" type="SigPolicyQualifierType" maxOccurs="unbounded"/>

Element SPURI

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:anyURI

Properties

content:

simple

Used by

Complex Type

SigPolicyQualifierType

Source

<xs:element name="SPURI" type="xs:anyURI"/>

Element SignaturePolicyIdentifierType / SignaturePolicyImplied

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Source

<xs:element name="SignaturePolicyImplied"/>

Element SignedSignaturePropertiesType / SignatureProductionPlace

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignatureProductionPlaceType

Properties

content:	complex
minOccurs:	0

Model

City{0,1} , StateOrProvince{0,1} , PostalCode{0,1} , CountryName{0,1}

Children

City, CountryName, PostalCode, StateOrProvince

Instance

<SignatureProductionPlace xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <City>{0,1}</City>
  <StateOrProvince>{0,1}</StateOrProvince>
  <PostalCode>{0,1}</PostalCode>
  <CountryName>{0,1}</CountryName>
</SignatureProductionPlace>

Source

<xs:element name="SignatureProductionPlace" type="SignatureProductionPlaceType" minOccurs="0"/>

Element SignatureProductionPlaceType / City

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="City" type="xs:string" minOccurs="0"/>

Element SignatureProductionPlaceType / StateOrProvince

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="StateOrProvince" type="xs:string" minOccurs="0"/>

Element SignatureProductionPlaceType / PostalCode

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="PostalCode" type="xs:string" minOccurs="0"/>

Element SignatureProductionPlaceType / CountryName

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="CountryName" type="xs:string" minOccurs="0"/>

Element SignedSignaturePropertiesType / SignerRole

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignerRoleType

Properties

content:	complex
minOccurs:	0

Model

ClaimedRoles{0,1} , CertifiedRoles{0,1}

Children

CertifiedRoles, ClaimedRoles

Instance

<SignerRole xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <ClaimedRoles>{0,1}</ClaimedRoles>
  <CertifiedRoles>{0,1}</CertifiedRoles>
</SignerRole>

Source

<xs:element name="SignerRole" type="SignerRoleType" minOccurs="0"/>

Element SignerRoleType / ClaimedRoles

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ClaimedRolesListType

Properties

content:	complex
minOccurs:	0

Model

ClaimedRole

Children

ClaimedRole

Instance

<ClaimedRoles xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <ClaimedRole>{1,1}</ClaimedRole>
</ClaimedRoles>

Source

<xs:element name="ClaimedRoles" type="ClaimedRolesListType" minOccurs="0"/>

Element ClaimedRolesListType / ClaimedRole

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:token

Properties

content:

simple

Source

<xs:element name="ClaimedRole" type="xs:token"/>

Element SignerRoleType / CertifiedRoles

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CertifiedRolesListType

Properties

content:	complex
minOccurs:	0

Model

CertifiedRole+

Children

CertifiedRole

Instance

<CertifiedRoles xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CertifiedRole Id="">{1,unbounded}</CertifiedRole>
</CertifiedRoles>

Source

<xs:element name="CertifiedRoles" type="CertifiedRolesListType" minOccurs="0"/>

Element CertifiedRolesListType / CertifiedRole

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

EncapsulatedPKIDataType

Properties

content:	complex
maxOccurs:	unbounded

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="CertifiedRole" type="EncapsulatedPKIDataType" maxOccurs="unbounded"/>

Element SignedPropertiesType / SignedDataObjectProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignedDataObjectPropertiesType

Properties

content:	complex
minOccurs:	0

Model

DataObjectFormat* , CommitmentTypeIndication* , AllDataObjectsTimeStamp* , IndividualDataObjectsTimeStamp*

Children

AllDataObjectsTimeStamp, CommitmentTypeIndication, DataObjectFormat, IndividualDataObjectsTimeStamp

Instance

<SignedDataObjectProperties xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <DataObjectFormat ObjectReference="">{0,unbounded}</DataObjectFormat>
  <CommitmentTypeIndication>{0,unbounded}</CommitmentTypeIndication>
  <AllDataObjectsTimeStamp>{0,unbounded}</AllDataObjectsTimeStamp>
  <IndividualDataObjectsTimeStamp>{0,unbounded}</IndividualDataObjectsTimeStamp>
</SignedDataObjectProperties>

Source

<xs:element name="SignedDataObjectProperties" type="SignedDataObjectPropertiesType" minOccurs="0"/>

Element SignedDataObjectPropertiesType / DataObjectFormat

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

DataObjectFormatType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

Description{0,1} , ObjectIdentifier{0,1} , MimeType{0,1} , Encoding{0,1}

Children

Description, Encoding, MimeType, ObjectIdentifier

Instance

<DataObjectFormat ObjectReference="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Description>{0,1}</Description>
  <ObjectIdentifier>{0,1}</ObjectIdentifier>
  <MimeType>{0,1}</MimeType>
  <Encoding>{0,1}</Encoding>
</DataObjectFormat>

Attributes

QName	Type	Fixed	Default	Use	Annotation
ObjectReference	xs:anyURI			required

Source

<xs:element name="DataObjectFormat" type="DataObjectFormatType" minOccurs="0" maxOccurs="unbounded"/>

Element DataObjectFormatType / Description

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="Description" type="xs:string" minOccurs="0"/>

Element DataObjectFormatType / ObjectIdentifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ObjectIdentifierType

Properties

content:	complex
minOccurs:	0

Model

Identifier , Description{0,1} , DocumentationReferences{0,1}

Children

Description, DocumentationReferences, Identifier

Instance

<ObjectIdentifier xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Identifier Qualifier="">{1,1}</Identifier>
  <Description>{0,1}</Description>
  <DocumentationReferences>{0,1}</DocumentationReferences>
</ObjectIdentifier>

Source

<xs:element name="ObjectIdentifier" type="ObjectIdentifierType" minOccurs="0"/>

Element DataObjectFormatType / MimeType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="MimeType" type="xs:string" minOccurs="0"/>

Element DataObjectFormatType / Encoding

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:anyURI

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="Encoding" type="xs:anyURI" minOccurs="0"/>

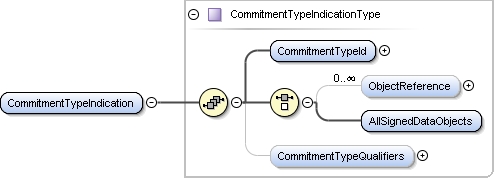

Element SignedDataObjectPropertiesType / CommitmentTypeIndication

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CommitmentTypeIndicationType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

CommitmentTypeId , (ObjectReference* | AllSignedDataObjects) , CommitmentTypeQualifiers{0,1}

Children

AllSignedDataObjects, CommitmentTypeId, CommitmentTypeQualifiers, ObjectReference

Instance

<CommitmentTypeIndication xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CommitmentTypeId>{1,1}</CommitmentTypeId>
  <ObjectReference>{0,unbounded}</ObjectReference>
  <AllSignedDataObjects>{1,1}</AllSignedDataObjects>
  <CommitmentTypeQualifiers>{0,1}</CommitmentTypeQualifiers>
</CommitmentTypeIndication>

Source

<xs:element name="CommitmentTypeIndication" type="CommitmentTypeIndicationType" minOccurs="0" maxOccurs="unbounded"/>

Element CommitmentTypeIndicationType / CommitmentTypeId

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ObjectIdentifierType

Properties

content:

complex

Model

Identifier , Description{0,1} , DocumentationReferences{0,1}

Children

Description, DocumentationReferences, Identifier

Instance

<CommitmentTypeId xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Identifier Qualifier="">{1,1}</Identifier>
  <Description>{0,1}</Description>
  <DocumentationReferences>{0,1}</DocumentationReferences>
</CommitmentTypeId>

Source

<xs:element name="CommitmentTypeId" type="ObjectIdentifierType"/>

Element CommitmentTypeIndicationType / ObjectReference

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:anyURI

Properties

content:	simple
minOccurs:	0
maxOccurs:	unbounded

Source

<xs:element name="ObjectReference" type="xs:anyURI" minOccurs="0" maxOccurs="unbounded"/>

Element CommitmentTypeIndicationType / AllSignedDataObjects

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Source

<xs:element name="AllSignedDataObjects"/>

Element CommitmentTypeIndicationType / CommitmentTypeQualifiers

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CommitmentTypeQualifiersListType

Properties

content:	complex
minOccurs:	0

Model

CommitmentTypeQualifier*

Children

CommitmentTypeQualifier

Instance

<CommitmentTypeQualifiers xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CommitmentTypeQualifier>{0,unbounded}</CommitmentTypeQualifier>
</CommitmentTypeQualifiers>

Source

<xs:element name="CommitmentTypeQualifiers" type="CommitmentTypeQualifiersListType" minOccurs="0"/>

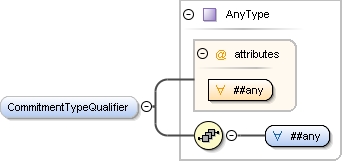

Element CommitmentTypeQualifiersListType / CommitmentTypeQualifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

AnyType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded
mixed:	true

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Default	Use	Annotation
ANY attribute from ANY namespace

Source

<xs:element name="CommitmentTypeQualifier" type="AnyType" minOccurs="0" maxOccurs="unbounded"/>

Element SignedDataObjectPropertiesType / AllDataObjectsTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<AllDataObjectsTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</AllDataObjectsTimeStamp>

Source

<xs:element name="AllDataObjectsTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>

Element SignedDataObjectPropertiesType / IndividualDataObjectsTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<IndividualDataObjectsTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</IndividualDataObjectsTimeStamp>

Source

<xs:element name="IndividualDataObjectsTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>

Element QualifyingPropertiesType / UnsignedProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

UnsignedPropertiesType

Properties

content:	complex
minOccurs:	0

Model

UnsignedSignatureProperties{0,1} , UnsignedDataObjectProperties{0,1}

Children

UnsignedDataObjectProperties, UnsignedSignatureProperties

Instance

<UnsignedProperties Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <UnsignedSignatureProperties>{0,1}</UnsignedSignatureProperties>
  <UnsignedDataObjectProperties>{0,1}</UnsignedDataObjectProperties>
</UnsignedProperties>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="UnsignedProperties" type="UnsignedPropertiesType" minOccurs="0"/>

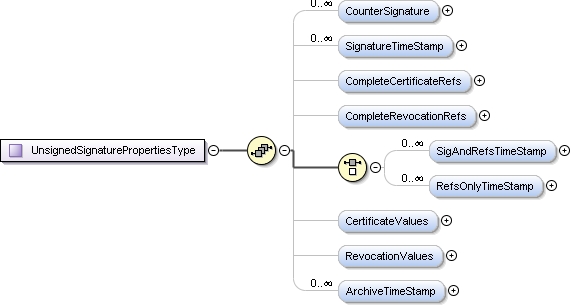

Element UnsignedPropertiesType / UnsignedSignatureProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

UnsignedSignaturePropertiesType

Properties

content:	complex
minOccurs:	0

Model

CounterSignature* , SignatureTimeStamp* , CompleteCertificateRefs{0,1} , CompleteRevocationRefs{0,1} , (SigAndRefsTimeStamp* | RefsOnlyTimeStamp*) , CertificateValues{0,1} , RevocationValues{0,1} , ArchiveTimeStamp*

Children

ArchiveTimeStamp, CertificateValues, CompleteCertificateRefs, CompleteRevocationRefs, CounterSignature, RefsOnlyTimeStamp, RevocationValues, SigAndRefsTimeStamp, SignatureTimeStamp

Instance

<UnsignedSignatureProperties xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CounterSignature>{0,unbounded}</CounterSignature>
  <SignatureTimeStamp>{0,unbounded}</SignatureTimeStamp>
  <CompleteCertificateRefs Id="">{0,1}</CompleteCertificateRefs>
  <CompleteRevocationRefs Id="">{0,1}</CompleteRevocationRefs>
  <SigAndRefsTimeStamp>{0,unbounded}</SigAndRefsTimeStamp>
  <RefsOnlyTimeStamp>{0,unbounded}</RefsOnlyTimeStamp>
  <CertificateValues Id="">{0,1}</CertificateValues>
  <RevocationValues Id="">{0,1}</RevocationValues>
  <ArchiveTimeStamp>{0,unbounded}</ArchiveTimeStamp>
</UnsignedSignatureProperties>

Source

<xs:element name="UnsignedSignatureProperties" type="UnsignedSignaturePropertiesType" minOccurs="0"/>

Element UnsignedSignaturePropertiesType / CounterSignature

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CounterSignatureType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

ds:Signature

Children

ds:Signature

Instance

<CounterSignature xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <ds:Signature Id="">{1,1}</ds:Signature>
</CounterSignature>

Source

<xs:element name="CounterSignature" type="CounterSignatureType" minOccurs="0" maxOccurs="unbounded"/>

Element UnsignedSignaturePropertiesType / SignatureTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<SignatureTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</SignatureTimeStamp>

Source

<xs:element name="SignatureTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>

Element UnsignedSignaturePropertiesType / CompleteCertificateRefs

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CompleteCertificateRefsType

Properties

content:	complex
minOccurs:	0

Model

CertRefs

Children

CertRefs

Instance

<CompleteCertificateRefs Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CertRefs>{1,1}</CertRefs>
</CompleteCertificateRefs>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="CompleteCertificateRefs" type="CompleteCertificateRefsType" minOccurs="0"/>

Element CompleteCertificateRefsType / CertRefs

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CertIDListType

Properties

content:

complex

Model

Cert+

Children

Cert

Instance

<CertRefs xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Cert URI="">{1,unbounded}</Cert>
</CertRefs>

Source

<xs:element name="CertRefs" type="CertIDListType"/>

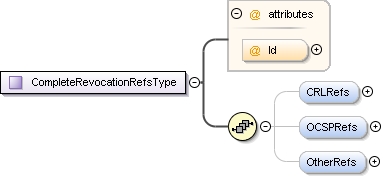

Element UnsignedSignaturePropertiesType / CompleteRevocationRefs

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CompleteRevocationRefsType

Properties

content:	complex
minOccurs:	0

Model

CRLRefs{0,1} , OCSPRefs{0,1} , OtherRefs{0,1}

Children

CRLRefs, OCSPRefs, OtherRefs

Instance

<CompleteRevocationRefs Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CRLRefs>{0,1}</CRLRefs>
  <OCSPRefs>{0,1}</OCSPRefs>
  <OtherRefs>{0,1}</OtherRefs>
</CompleteRevocationRefs>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="CompleteRevocationRefs" type="CompleteRevocationRefsType" minOccurs="0"/>

Element CompleteRevocationRefsType / CRLRefs

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CRLRefsType

Properties

content:	complex
minOccurs:	0

Model

CRLRef+

Children

CRLRef

Instance

<CRLRefs xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CRLRef>{1,unbounded}</CRLRef>
</CRLRefs>

Source

<xs:element name="CRLRefs" type="CRLRefsType" minOccurs="0"/>

Element CRLRefsType / CRLRef

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CRLRefType

Properties

content:	complex
maxOccurs:	unbounded

Model

DigestAlgAndValue , CRLIdentifier{0,1}

Children

CRLIdentifier, DigestAlgAndValue

Instance

<CRLRef xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <DigestAlgAndValue>{1,1}</DigestAlgAndValue>
  <CRLIdentifier URI="">{0,1}</CRLIdentifier>
</CRLRef>

Source

<xs:element name="CRLRef" type="CRLRefType" maxOccurs="unbounded"/>

Element CRLRefType / DigestAlgAndValue

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

DigestAlgAndValueType

Properties

content:

complex

Model

DigestMethod , DigestValue

Children

DigestMethod, DigestValue

Instance

<DigestAlgAndValue xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <DigestMethod Algorithm="">{1,1}</DigestMethod>
  <DigestValue>{1,1}</DigestValue>
</DigestAlgAndValue>

Source

<xs:element name="DigestAlgAndValue" type="DigestAlgAndValueType"/>

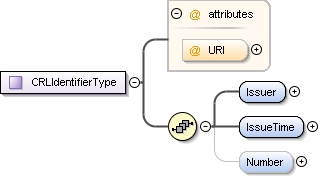

Element CRLRefType / CRLIdentifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CRLIdentifierType

Properties

content:	complex
minOccurs:	0

Model

Issuer , IssueTime , Number{0,1}

Children

IssueTime, Issuer, Number

Instance

<CRLIdentifier URI="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Issuer>{1,1}</Issuer>
  <IssueTime>{1,1}</IssueTime>
  <Number>{0,1}</Number>
</CRLIdentifier>

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			optional

Source

<xs:element name="CRLIdentifier" type="CRLIdentifierType" minOccurs="0"/>

Element CRLIdentifierType / Issuer

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:

simple

Source

<xs:element name="Issuer" type="xs:string"/>

Element CRLIdentifierType / IssueTime

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:dateTime

Properties

content:

simple

Source

<xs:element name="IssueTime" type="xs:dateTime"/>

Element CRLIdentifierType / Number

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:integer

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="Number" type="xs:integer" minOccurs="0"/>

Element CompleteRevocationRefsType / OCSPRefs

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

OCSPRefsType

Properties

content:	complex
minOccurs:	0

Model

OCSPRef+

Children

OCSPRef

Instance

<OCSPRefs xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <OCSPRef>{1,unbounded}</OCSPRef>
</OCSPRefs>

Source

<xs:element name="OCSPRefs" type="OCSPRefsType" minOccurs="0"/>

Element OCSPRefsType / OCSPRef

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

OCSPRefType

Properties

content:	complex
maxOccurs:	unbounded

Model

OCSPIdentifier , DigestAlgAndValue{0,1}

Children

DigestAlgAndValue, OCSPIdentifier

Instance

<OCSPRef xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <OCSPIdentifier URI="">{1,1}</OCSPIdentifier>
  <DigestAlgAndValue>{0,1}</DigestAlgAndValue>
</OCSPRef>

Source

<xs:element name="OCSPRef" type="OCSPRefType" maxOccurs="unbounded"/>

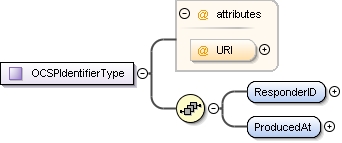

Element OCSPRefType / OCSPIdentifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

OCSPIdentifierType

Properties

content:

complex

Model

ResponderID , ProducedAt

Children

ProducedAt, ResponderID

Instance

<OCSPIdentifier URI="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <ResponderID>{1,1}</ResponderID>
  <ProducedAt>{1,1}</ProducedAt>
</OCSPIdentifier>

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			optional

Source

<xs:element name="OCSPIdentifier" type="OCSPIdentifierType"/>

Element OCSPIdentifierType / ResponderID

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:

simple

Source

<xs:element name="ResponderID" type="xs:string"/>

Element OCSPIdentifierType / ProducedAt

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:dateTime

Properties

content:

simple

Source

<xs:element name="ProducedAt" type="xs:dateTime"/>

Element OCSPRefType / DigestAlgAndValue

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

DigestAlgAndValueType

Properties

content:	complex
minOccurs:	0

Model

DigestMethod , DigestValue

Children

DigestMethod, DigestValue

Instance

<DigestAlgAndValue xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <DigestMethod Algorithm="">{1,1}</DigestMethod>
  <DigestValue>{1,1}</DigestValue>
</DigestAlgAndValue>

Source

<xs:element name="DigestAlgAndValue" type="DigestAlgAndValueType" minOccurs="0"/>

Element CompleteRevocationRefsType / OtherRefs

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

OtherCertStatusRefsType

Properties

content:	complex
minOccurs:	0

Model

OtherRef+

Children

OtherRef

Instance

<OtherRefs xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <OtherRef>{1,unbounded}</OtherRef>
</OtherRefs>

Source

<xs:element name="OtherRefs" type="OtherCertStatusRefsType" minOccurs="0"/>

Element OtherCertStatusRefsType / OtherRef

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

AnyType

Properties

content:	complex
maxOccurs:	unbounded
mixed:	true

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Default	Use	Annotation
ANY attribute from ANY namespace

Source

<xs:element name="OtherRef" type="AnyType" maxOccurs="unbounded"/>

Element UnsignedSignaturePropertiesType / SigAndRefsTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<SigAndRefsTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</SigAndRefsTimeStamp>

Source

<xs:element name="SigAndRefsTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>

Element UnsignedSignaturePropertiesType / RefsOnlyTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<RefsOnlyTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</RefsOnlyTimeStamp>

Source

<xs:element name="RefsOnlyTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>

Element UnsignedSignaturePropertiesType / CertificateValues

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CertificateValuesType

Properties

content:	complex
minOccurs:	0

Model

EncapsulatedX509Certificate | OtherCertificate

Children

EncapsulatedX509Certificate, OtherCertificate

Instance

<CertificateValues Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <EncapsulatedX509Certificate Id="">{1,1}</EncapsulatedX509Certificate>
  <OtherCertificate>{1,1}</OtherCertificate>
</CertificateValues>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="CertificateValues" type="CertificateValuesType" minOccurs="0"/>

Element CertificateValuesType / EncapsulatedX509Certificate

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

EncapsulatedPKIDataType

Properties

content:

complex

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="EncapsulatedX509Certificate" type="EncapsulatedPKIDataType"/>

Element CertificateValuesType / OtherCertificate

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

AnyType

Properties

content:	complex
mixed:	true

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Default	Use	Annotation
ANY attribute from ANY namespace

Source

<xs:element name="OtherCertificate" type="AnyType"/>

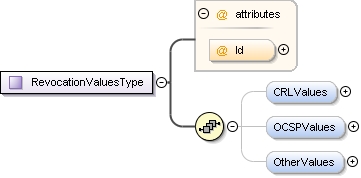

Element UnsignedSignaturePropertiesType / RevocationValues

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

RevocationValuesType

Properties

content:	complex
minOccurs:	0

Model

CRLValues{0,1} , OCSPValues{0,1} , OtherValues{0,1}

Children

CRLValues, OCSPValues, OtherValues

Instance

<RevocationValues Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CRLValues>{0,1}</CRLValues>
  <OCSPValues>{0,1}</OCSPValues>
  <OtherValues>{0,1}</OtherValues>
</RevocationValues>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="RevocationValues" type="RevocationValuesType" minOccurs="0"/>

Element RevocationValuesType / CRLValues

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CRLValuesType

Properties

content:	complex
minOccurs:	0

Model

EncapsulatedCRLValue+

Children

EncapsulatedCRLValue

Instance

<CRLValues xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <EncapsulatedCRLValue Id="">{1,unbounded}</EncapsulatedCRLValue>
</CRLValues>

Source

<xs:element name="CRLValues" type="CRLValuesType" minOccurs="0"/>

Element CRLValuesType / EncapsulatedCRLValue

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

EncapsulatedPKIDataType

Properties

content:	complex
maxOccurs:	unbounded

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="EncapsulatedCRLValue" type="EncapsulatedPKIDataType" maxOccurs="unbounded"/>

Element RevocationValuesType / OCSPValues

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

OCSPValuesType

Properties

content:	complex
minOccurs:	0

Model

EncapsulatedOCSPValue+

Children

EncapsulatedOCSPValue

Instance

<OCSPValues xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <EncapsulatedOCSPValue Id="">{1,unbounded}</EncapsulatedOCSPValue>
</OCSPValues>

Source

<xs:element name="OCSPValues" type="OCSPValuesType" minOccurs="0"/>

Element OCSPValuesType / EncapsulatedOCSPValue

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

EncapsulatedPKIDataType

Properties

content:	complex
maxOccurs:	unbounded

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="EncapsulatedOCSPValue" type="EncapsulatedPKIDataType" maxOccurs="unbounded"/>

Element RevocationValuesType / OtherValues

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

OtherCertStatusValuesType

Properties

content:	complex
minOccurs:	0

Model

OtherValue+

Children

OtherValue

Instance

<OtherValues xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <OtherValue>{1,unbounded}</OtherValue>
</OtherValues>

Source

<xs:element name="OtherValues" type="OtherCertStatusValuesType" minOccurs="0"/>

Element OtherCertStatusValuesType / OtherValue

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

AnyType

Properties

content:	complex
maxOccurs:	unbounded
mixed:	true

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Default	Use	Annotation
ANY attribute from ANY namespace

Source

<xs:element name="OtherValue" type="AnyType" maxOccurs="unbounded"/>

Element UnsignedSignaturePropertiesType / ArchiveTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<ArchiveTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</ArchiveTimeStamp>

Source

<xs:element name="ArchiveTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>

Element UnsignedPropertiesType / UnsignedDataObjectProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

UnsignedDataObjectPropertiesType

Properties

content:	complex
minOccurs:	0

Model

UnsignedDataObjectProperty*

Children

UnsignedDataObjectProperty

Instance

<UnsignedDataObjectProperties xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <UnsignedDataObjectProperty>{0,unbounded}</UnsignedDataObjectProperty>
</UnsignedDataObjectProperties>

Source

<xs:element name="UnsignedDataObjectProperties" type="UnsignedDataObjectPropertiesType" minOccurs="0"/>

Element UnsignedDataObjectPropertiesType / UnsignedDataObjectProperty

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

AnyType

Properties

content:	complex
minOccurs:	0
maxOccurs:	unbounded
mixed:	true

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Default	Use	Annotation
ANY attribute from ANY namespace

Source

<xs:element name="UnsignedDataObjectProperty" type="AnyType" minOccurs="0" maxOccurs="unbounded"/>

Element SignedProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignedPropertiesType

Properties

content:

complex

Model

SignedSignatureProperties , SignedDataObjectProperties{0,1}

Children

SignedDataObjectProperties, SignedSignatureProperties

Instance

<SignedProperties Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <SignedSignatureProperties>{1,1}</SignedSignatureProperties>
  <SignedDataObjectProperties>{0,1}</SignedDataObjectProperties>
</SignedProperties>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="SignedProperties" type="SignedPropertiesType"/>

Element UnsignedProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

UnsignedPropertiesType

Properties

content:

complex

Model

UnsignedSignatureProperties{0,1} , UnsignedDataObjectProperties{0,1}

Children

UnsignedDataObjectProperties, UnsignedSignatureProperties

Instance

<UnsignedProperties Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <UnsignedSignatureProperties>{0,1}</UnsignedSignatureProperties>
  <UnsignedDataObjectProperties>{0,1}</UnsignedDataObjectProperties>
</UnsignedProperties>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="UnsignedProperties" type="UnsignedPropertiesType"/>

Element SignedSignatureProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignedSignaturePropertiesType

Properties

content:

complex

Model

SigningTime , SigningCertificate , SignaturePolicyIdentifier , SignatureProductionPlace{0,1} , SignerRole{0,1}

Children

SignaturePolicyIdentifier, SignatureProductionPlace, SignerRole, SigningCertificate, SigningTime

Instance

<SignedSignatureProperties xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <SigningTime>{1,1}</SigningTime>
  <SigningCertificate>{1,1}</SigningCertificate>
  <SignaturePolicyIdentifier>{1,1}</SignaturePolicyIdentifier>
  <SignatureProductionPlace>{0,1}</SignatureProductionPlace>
  <SignerRole>{0,1}</SignerRole>
</SignedSignatureProperties>

Source

<xs:element name="SignedSignatureProperties" type="SignedSignaturePropertiesType"/>

Element SignedDataObjectProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignedDataObjectPropertiesType

Properties

content:

complex

Model

DataObjectFormat* , CommitmentTypeIndication* , AllDataObjectsTimeStamp* , IndividualDataObjectsTimeStamp*

Children

AllDataObjectsTimeStamp, CommitmentTypeIndication, DataObjectFormat, IndividualDataObjectsTimeStamp

Instance

<SignedDataObjectProperties xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <DataObjectFormat ObjectReference="">{0,unbounded}</DataObjectFormat>
  <CommitmentTypeIndication>{0,unbounded}</CommitmentTypeIndication>
  <AllDataObjectsTimeStamp>{0,unbounded}</AllDataObjectsTimeStamp>
  <IndividualDataObjectsTimeStamp>{0,unbounded}</IndividualDataObjectsTimeStamp>
</SignedDataObjectProperties>

Source

<xs:element name="SignedDataObjectProperties" type="SignedDataObjectPropertiesType"/>

Element UnsignedSignatureProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

UnsignedSignaturePropertiesType

Properties

content:

complex

Model

Children

Instance

<UnsignedSignatureProperties xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CounterSignature>{0,unbounded}</CounterSignature>
  <SignatureTimeStamp>{0,unbounded}</SignatureTimeStamp>
  <CompleteCertificateRefs Id="">{0,1}</CompleteCertificateRefs>
  <CompleteRevocationRefs Id="">{0,1}</CompleteRevocationRefs>
  <SigAndRefsTimeStamp>{0,unbounded}</SigAndRefsTimeStamp>
  <RefsOnlyTimeStamp>{0,unbounded}</RefsOnlyTimeStamp>
  <CertificateValues Id="">{0,1}</CertificateValues>
  <RevocationValues Id="">{0,1}</RevocationValues>
  <ArchiveTimeStamp>{0,unbounded}</ArchiveTimeStamp>
</UnsignedSignatureProperties>

Source

<xs:element name="UnsignedSignatureProperties" type="UnsignedSignaturePropertiesType"/>

Element UnsignedDataObjectProperties

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

UnsignedDataObjectPropertiesType

Properties

content:

complex

Model

UnsignedDataObjectProperty*

Children

UnsignedDataObjectProperty

Instance

<UnsignedDataObjectProperties xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <UnsignedDataObjectProperty>{0,unbounded}</UnsignedDataObjectProperty>
</UnsignedDataObjectProperties>

Source

<xs:element name="UnsignedDataObjectProperties" type="UnsignedDataObjectPropertiesType"/>

Element QualifyingPropertiesReference

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

QualifyingPropertiesReferenceType

Properties

content:

complex

Model

Transforms{0,1}

Children

Transforms

Instance

<QualifyingPropertiesReference Id="" URI="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Transforms>{0,1}</Transforms>
</QualifyingPropertiesReference>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional
URI	xs:anyURI			required

Source

<xs:element name="QualifyingPropertiesReference" type="QualifyingPropertiesReferenceType"/>

Element QualifyingPropertiesReferenceType / Transforms

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

ds:TransformsType

Properties

content:	complex
minOccurs:	0

Model

ds:Transform+

Children

ds:Transform

Instance

<Transforms xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <ds:Transform Algorithm="">{1,unbounded}</ds:Transform>
</Transforms>

Source

<xs:element name="Transforms" type="ds:TransformsType" minOccurs="0"/>

Element SigningTime

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:dateTime

Properties

content:

simple

Source

<xs:element name="SigningTime" type="xs:dateTime"/>

Element SigningCertificate

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CertIDListType

Properties

content:

complex

Model

Cert+

Children

Cert

Instance

<SigningCertificate xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Cert URI="">{1,unbounded}</Cert>
</SigningCertificate>

Source

<xs:element name="SigningCertificate" type="CertIDListType"/>

Element SignaturePolicyIdentifier

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignaturePolicyIdentifierType

Properties

content:

complex

Model

SignaturePolicyId | SignaturePolicyImplied

Children

SignaturePolicyId, SignaturePolicyImplied

Instance

<SignaturePolicyIdentifier xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <SignaturePolicyId>{1,1}</SignaturePolicyId>
  <SignaturePolicyImplied>{1,1}</SignaturePolicyImplied>
</SignaturePolicyIdentifier>

Source

<xs:element name="SignaturePolicyIdentifier" type="SignaturePolicyIdentifierType"/>

Element SPUserNotice

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SPUserNoticeType

Properties

content:

complex

Model

NoticeRef{0,1} , ExplicitText{0,1}

Children

ExplicitText, NoticeRef

Instance

<SPUserNotice xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <NoticeRef>{0,1}</NoticeRef>
  <ExplicitText>{0,1}</ExplicitText>
</SPUserNotice>

Source

<xs:element name="SPUserNotice" type="SPUserNoticeType"/>

Element SPUserNoticeType / NoticeRef

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

NoticeReferenceType

Properties

content:	complex
minOccurs:	0

Model

Organization , NoticeNumbers

Children

NoticeNumbers, Organization

Instance

<NoticeRef xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Organization>{1,1}</Organization>
  <NoticeNumbers>{1,1}</NoticeNumbers>
</NoticeRef>

Source

<xs:element name="NoticeRef" type="NoticeReferenceType" minOccurs="0"/>

Element NoticeReferenceType / Organization

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:

simple

Source

<xs:element name="Organization" type="xs:string"/>

Element NoticeReferenceType / NoticeNumbers

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

IntegerListType

Properties

content:

complex

Model

int*

Children

int

Instance

<NoticeNumbers xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <int>{0,unbounded}</int>
</NoticeNumbers>

Source

<xs:element name="NoticeNumbers" type="IntegerListType"/>

Element IntegerListType / int

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:integer

Properties

content:	simple
minOccurs:	0
maxOccurs:	unbounded

Source

<xs:element name="int" type="xs:integer" minOccurs="0" maxOccurs="unbounded"/>

Element SPUserNoticeType / ExplicitText

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

xs:string

Properties

content:	simple
minOccurs:	0

Source

<xs:element name="ExplicitText" type="xs:string" minOccurs="0"/>

Element CounterSignature

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CounterSignatureType

Properties

content:

complex

Model

ds:Signature

Children

ds:Signature

Instance

<CounterSignature xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <ds:Signature Id="">{1,1}</ds:Signature>
</CounterSignature>

Source

<xs:element name="CounterSignature" type="CounterSignatureType"/>

Element DataObjectFormat

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

DataObjectFormatType

Properties

content:

complex

Model

Description{0,1} , ObjectIdentifier{0,1} , MimeType{0,1} , Encoding{0,1}

Children

Description, Encoding, MimeType, ObjectIdentifier

Instance

<DataObjectFormat ObjectReference="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <Description>{0,1}</Description>
  <ObjectIdentifier>{0,1}</ObjectIdentifier>
  <MimeType>{0,1}</MimeType>
  <Encoding>{0,1}</Encoding>
</DataObjectFormat>

Attributes

QName	Type	Fixed	Default	Use	Annotation
ObjectReference	xs:anyURI			required

Source

<xs:element name="DataObjectFormat" type="DataObjectFormatType"/>

Element CommitmentTypeIndication

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CommitmentTypeIndicationType

Properties

content:

complex

Model

CommitmentTypeId , (ObjectReference* | AllSignedDataObjects) , CommitmentTypeQualifiers{0,1}

Children

AllSignedDataObjects, CommitmentTypeId, CommitmentTypeQualifiers, ObjectReference

Instance

<CommitmentTypeIndication xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CommitmentTypeId>{1,1}</CommitmentTypeId>
  <ObjectReference>{0,unbounded}</ObjectReference>
  <AllSignedDataObjects>{1,1}</AllSignedDataObjects>
  <CommitmentTypeQualifiers>{0,1}</CommitmentTypeQualifiers>
</CommitmentTypeIndication>

Source

<xs:element name="CommitmentTypeIndication" type="CommitmentTypeIndicationType"/>

Element SignatureProductionPlace

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignatureProductionPlaceType

Properties

content:

complex

Model

City{0,1} , StateOrProvince{0,1} , PostalCode{0,1} , CountryName{0,1}

Children

City, CountryName, PostalCode, StateOrProvince

Instance

<SignatureProductionPlace xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <City>{0,1}</City>
  <StateOrProvince>{0,1}</StateOrProvince>
  <PostalCode>{0,1}</PostalCode>
  <CountryName>{0,1}</CountryName>
</SignatureProductionPlace>

Source

<xs:element name="SignatureProductionPlace" type="SignatureProductionPlaceType"/>

Element SignerRole

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

SignerRoleType

Properties

content:

complex

Model

ClaimedRoles{0,1} , CertifiedRoles{0,1}

Children

CertifiedRoles, ClaimedRoles

Instance

<SignerRole xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <ClaimedRoles>{0,1}</ClaimedRoles>
  <CertifiedRoles>{0,1}</CertifiedRoles>
</SignerRole>

Source

<xs:element name="SignerRole" type="SignerRoleType"/>

Element AllDataObjectsTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:

complex

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<AllDataObjectsTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</AllDataObjectsTimeStamp>

Source

<xs:element name="AllDataObjectsTimeStamp" type="TimeStampType"/>

Element IndividualDataObjectsTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:

complex

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<IndividualDataObjectsTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</IndividualDataObjectsTimeStamp>

Source

<xs:element name="IndividualDataObjectsTimeStamp" type="TimeStampType"/>

Element SignatureTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:

complex

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<SignatureTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</SignatureTimeStamp>

Source

<xs:element name="SignatureTimeStamp" type="TimeStampType"/>

Element CompleteCertificateRefs

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CompleteCertificateRefsType

Properties

content:

complex

Model

CertRefs

Children

CertRefs

Instance

<CompleteCertificateRefs Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CertRefs>{1,1}</CertRefs>
</CompleteCertificateRefs>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="CompleteCertificateRefs" type="CompleteCertificateRefsType"/>

Element CompleteRevocationRefs

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CompleteRevocationRefsType

Properties

content:

complex

Model

CRLRefs{0,1} , OCSPRefs{0,1} , OtherRefs{0,1}

Children

CRLRefs, OCSPRefs, OtherRefs

Instance

<CompleteRevocationRefs Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CRLRefs>{0,1}</CRLRefs>
  <OCSPRefs>{0,1}</OCSPRefs>
  <OtherRefs>{0,1}</OtherRefs>
</CompleteRevocationRefs>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="CompleteRevocationRefs" type="CompleteRevocationRefsType"/>

Element SigAndRefsTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:

complex

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<SigAndRefsTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</SigAndRefsTimeStamp>

Source

<xs:element name="SigAndRefsTimeStamp" type="TimeStampType"/>

Element RefsOnlyTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:

complex

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<RefsOnlyTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</RefsOnlyTimeStamp>

Source

<xs:element name="RefsOnlyTimeStamp" type="TimeStampType"/>

Element CertificateValues

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

CertificateValuesType

Properties

content:

complex

Model

EncapsulatedX509Certificate | OtherCertificate

Children

EncapsulatedX509Certificate, OtherCertificate

Instance

<CertificateValues Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <EncapsulatedX509Certificate Id="">{1,1}</EncapsulatedX509Certificate>
  <OtherCertificate>{1,1}</OtherCertificate>
</CertificateValues>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="CertificateValues" type="CertificateValuesType"/>

Element RevocationValues

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

RevocationValuesType

Properties

content:

complex

Model

CRLValues{0,1} , OCSPValues{0,1} , OtherValues{0,1}

Children

CRLValues, OCSPValues, OtherValues

Instance

<RevocationValues Id="" xmlns="http://uri.etsi.org/01903/v1.1.1#">
  <CRLValues>{0,1}</CRLValues>
  <OCSPValues>{0,1}</OCSPValues>
  <OtherValues>{0,1}</OtherValues>
</RevocationValues>

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:element name="RevocationValues" type="RevocationValuesType"/>

Element ArchiveTimeStamp

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

TimeStampType

Properties

content:

complex

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Instance

<ArchiveTimeStamp xmlns="http://uri.etsi.org/01903/v1.1.1#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
  <HashDataInfo URI="">{0,unbounded}</HashDataInfo>
  <EncapsulatedTimeStamp Id="">{1,1}</EncapsulatedTimeStamp>
  <XMLTimeStamp>{1,1}</XMLTimeStamp>
  <ds:Signature Id="">{0,1}</ds:Signature>
</ArchiveTimeStamp>

Source

<xs:element name="ArchiveTimeStamp" type="TimeStampType"/>

Complex Type AnyType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Properties

mixed:

true

Used by

Elements

Any, CertificateValuesType/OtherCertificate, CommitmentTypeQualifiersListType/CommitmentTypeQualifier, OtherCertStatusRefsType/OtherRef, OtherCertStatusValuesType/OtherValue, TimeStampType/XMLTimeStamp, UnsignedDataObjectPropertiesType/UnsignedDataObjectProperty

Model

ANY element from ANY namespace

Attributes

QName	Type	Fixed	Default	Use	Annotation
ANY attribute from ANY namespace

Source

<xs:complexType name="AnyType" mixed="true">
  <xs:sequence>
    <xs:any namespace="##any" processContents="lax"/>
  </xs:sequence>
  <xs:anyAttribute namespace="##any"/>
</xs:complexType>

Complex Type ObjectIdentifierType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CommitmentTypeIndicationType/CommitmentTypeId, DataObjectFormatType/ObjectIdentifier, ObjectIdentifier, SignaturePolicyIdType/SigPolicyId

Model

Identifier , Description{0,1} , DocumentationReferences{0,1}

Children

Description, DocumentationReferences, Identifier

Source

<xs:complexType name="ObjectIdentifierType">
  <xs:sequence>
    <xs:element name="Identifier" type="IdentifierType"/>
    <xs:element name="Description" type="xs:string" minOccurs="0"/>
    <xs:element name="DocumentationReferences" type="DocumentationReferencesType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type IdentifierType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

extension of xs:anyURI

Used by

Element

ObjectIdentifierType/Identifier

Attributes

QName	Type	Fixed	Default	Use	Annotation
Qualifier	QualifierType			optional

Source

<xs:complexType name="IdentifierType">
  <xs:simpleContent>
    <xs:extension base="xs:anyURI">
      <xs:attribute name="Qualifier" type="QualifierType" use="optional"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

Simple Type QualifierType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

restriction of xs:string

Facets

enumeration	OIDAsURN
enumeration	OIDAsURI

Used by

Attribute

IdentifierType/@Qualifier

Source

<xs:simpleType name="QualifierType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="OIDAsURN"/>
    <xs:enumeration value="OIDAsURI"/>
  </xs:restriction>
</xs:simpleType>

Complex Type DocumentationReferencesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

ObjectIdentifierType/DocumentationReferences

Model

DocumentationReference

Children

DocumentationReference

Source

<xs:complexType name="DocumentationReferencesType">
  <xs:sequence maxOccurs="unbounded">
    <xs:element name="DocumentationReference" type="xs:anyURI"/>
  </xs:sequence>
</xs:complexType>

Complex Type EncapsulatedPKIDataType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Type

extension of xs:base64Binary

Used by

Elements

CRLValuesType/EncapsulatedCRLValue, CertificateValuesType/EncapsulatedX509Certificate, CertifiedRolesListType/CertifiedRole, EncapsulatedPKIData, OCSPValuesType/EncapsulatedOCSPValue, TimeStampType/EncapsulatedTimeStamp

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:complexType name="EncapsulatedPKIDataType">
  <xs:simpleContent>
    <xs:extension base="xs:base64Binary">
      <xs:attribute name="Id" type="xs:ID" use="optional"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

Complex Type TimeStampType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

AllDataObjectsTimeStamp, ArchiveTimeStamp, IndividualDataObjectsTimeStamp, RefsOnlyTimeStamp, SigAndRefsTimeStamp, SignatureTimeStamp, SignedDataObjectPropertiesType/AllDataObjectsTimeStamp, SignedDataObjectPropertiesType/IndividualDataObjectsTimeStamp, TimeStamp, UnsignedSignaturePropertiesType/ArchiveTimeStamp, UnsignedSignaturePropertiesType/RefsOnlyTimeStamp, UnsignedSignaturePropertiesType/SigAndRefsTimeStamp, UnsignedSignaturePropertiesType/SignatureTimeStamp

Model

HashDataInfo* , (EncapsulatedTimeStamp | XMLTimeStamp) , ds:Signature{0,1}

Children

EncapsulatedTimeStamp, HashDataInfo, XMLTimeStamp, ds:Signature

Source

<xs:complexType name="TimeStampType">
  <xs:sequence>
    <xs:element name="HashDataInfo" type="HashDataInfoType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:choice minOccurs="0">
      <xs:element name="EncapsulatedTimeStamp" type="EncapsulatedPKIDataType"/>
      <xs:element name="XMLTimeStamp" type="AnyType"/>
    </xs:choice>
    <xs:element ref="ds:Signature" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type HashDataInfoType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

TimeStampType/HashDataInfo

Model

Transforms{0,1}

Children

Transforms

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			required

Source

<xs:complexType name="HashDataInfoType">
  <xs:sequence>
    <xs:element name="Transforms" type="ds:TransformsType" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="URI" type="xs:anyURI" use="required"/>
</xs:complexType>

Complex Type QualifyingPropertiesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

QualifyingProperties

Model

SignedProperties{0,1} , UnsignedProperties{0,1}

Children

SignedProperties, UnsignedProperties

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional
Target	xs:anyURI			required

Source

<xs:complexType name="QualifyingPropertiesType">
  <xs:sequence>
    <xs:element name="SignedProperties" type="SignedPropertiesType" minOccurs="0"/>
    <xs:element name="UnsignedProperties" type="UnsignedPropertiesType" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="Target" type="xs:anyURI" use="required"/>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Complex Type SignedPropertiesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

QualifyingPropertiesType/SignedProperties, SignedProperties

Model

SignedSignatureProperties , SignedDataObjectProperties{0,1}

Children

SignedDataObjectProperties, SignedSignatureProperties

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:complexType name="SignedPropertiesType">
  <xs:sequence>
    <xs:element name="SignedSignatureProperties" type="SignedSignaturePropertiesType"/>
    <xs:element name="SignedDataObjectProperties" type="SignedDataObjectPropertiesType" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Complex Type SignedSignaturePropertiesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

SignedPropertiesType/SignedSignatureProperties, SignedSignatureProperties

Model

SigningTime , SigningCertificate , SignaturePolicyIdentifier , SignatureProductionPlace{0,1} , SignerRole{0,1}

Children

SignaturePolicyIdentifier, SignatureProductionPlace, SignerRole, SigningCertificate, SigningTime

Source

<xs:complexType name="SignedSignaturePropertiesType">
  <xs:sequence>
    <xs:element name="SigningTime" type="xs:dateTime"/>
    <xs:element name="SigningCertificate" type="CertIDListType"/>
    <xs:element name="SignaturePolicyIdentifier" type="SignaturePolicyIdentifierType"/>
    <xs:element name="SignatureProductionPlace" type="SignatureProductionPlaceType" minOccurs="0"/>
    <xs:element name="SignerRole" type="SignerRoleType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type CertIDListType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CompleteCertificateRefsType/CertRefs, SignedSignaturePropertiesType/SigningCertificate, SigningCertificate

Model

Cert+

Children

Cert

Source

<xs:complexType name="CertIDListType">
  <xs:sequence>
    <xs:element name="Cert" type="CertIDType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type CertIDType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

CertIDListType/Cert

Model

CertDigest , IssuerSerial

Children

CertDigest, IssuerSerial

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			optional

Source

<xs:complexType name="CertIDType">
  <xs:sequence>
    <xs:element name="CertDigest" type="DigestAlgAndValueType"/>
    <xs:element name="IssuerSerial" type="ds:X509IssuerSerialType"/>
  </xs:sequence>
  <xs:attribute name="URI" type="xs:anyURI" use="optional"/>
</xs:complexType>

Complex Type DigestAlgAndValueType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CRLRefType/DigestAlgAndValue, CertIDType/CertDigest, OCSPRefType/DigestAlgAndValue, SignaturePolicyIdType/SigPolicyHash

Model

DigestMethod , DigestValue

Children

DigestMethod, DigestValue

Source

<xs:complexType name="DigestAlgAndValueType">
  <xs:sequence>
    <xs:element name="DigestMethod" type="ds:DigestMethodType"/>
    <xs:element name="DigestValue" type="ds:DigestValueType"/>
  </xs:sequence>
</xs:complexType>

Complex Type SignaturePolicyIdentifierType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

SignaturePolicyIdentifier, SignedSignaturePropertiesType/SignaturePolicyIdentifier

Model

SignaturePolicyId | SignaturePolicyImplied

Children

SignaturePolicyId, SignaturePolicyImplied

Source

<xs:complexType name="SignaturePolicyIdentifierType">
  <xs:choice>
    <xs:element name="SignaturePolicyId" type="SignaturePolicyIdType"/>
    <xs:element name="SignaturePolicyImplied"/>
  </xs:choice>
</xs:complexType>

Complex Type SignaturePolicyIdType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

SignaturePolicyIdentifierType/SignaturePolicyId

Model

SigPolicyId , ds:Transforms{0,1} , SigPolicyHash , SigPolicyQualifiers{0,1}

Children

SigPolicyHash, SigPolicyId, SigPolicyQualifiers, ds:Transforms

Source

<xs:complexType name="SignaturePolicyIdType">
  <xs:sequence>
    <xs:element name="SigPolicyId" type="ObjectIdentifierType"/>
    <xs:element ref="ds:Transforms" minOccurs="0"/>
    <xs:element name="SigPolicyHash" type="DigestAlgAndValueType"/>
    <xs:element name="SigPolicyQualifiers" type="SigPolicyQualifiersListType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type SigPolicyQualifiersListType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

SignaturePolicyIdType/SigPolicyQualifiers

Model

SigPolicyQualifier+

Children

SigPolicyQualifier

Source

<xs:complexType name="SigPolicyQualifiersListType">
  <xs:sequence>
    <xs:element name="SigPolicyQualifier" type="SigPolicyQualifierType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type SigPolicyQualifierType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

SigPolicyQualifiersListType/SigPolicyQualifier

Model

SPURI

Children

SPURI

Source

<xs:complexType name="SigPolicyQualifierType">
  <xs:sequence>
    <xs:element ref="SPURI"/>
  </xs:sequence>
</xs:complexType>

Complex Type SignatureProductionPlaceType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

SignatureProductionPlace, SignedSignaturePropertiesType/SignatureProductionPlace

Model

City{0,1} , StateOrProvince{0,1} , PostalCode{0,1} , CountryName{0,1}

Children

City, CountryName, PostalCode, StateOrProvince

Source

<xs:complexType name="SignatureProductionPlaceType">
  <xs:sequence>
    <xs:element name="City" type="xs:string" minOccurs="0"/>
    <xs:element name="StateOrProvince" type="xs:string" minOccurs="0"/>
    <xs:element name="PostalCode" type="xs:string" minOccurs="0"/>
    <xs:element name="CountryName" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type SignerRoleType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

SignedSignaturePropertiesType/SignerRole, SignerRole

Model

ClaimedRoles{0,1} , CertifiedRoles{0,1}

Children

CertifiedRoles, ClaimedRoles

Source

<xs:complexType name="SignerRoleType">
  <xs:sequence>
    <xs:element name="ClaimedRoles" type="ClaimedRolesListType" minOccurs="0"/>
    <xs:element name="CertifiedRoles" type="CertifiedRolesListType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type ClaimedRolesListType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

SignerRoleType/ClaimedRoles

Model

ClaimedRole

Children

ClaimedRole

Source

<xs:complexType name="ClaimedRolesListType">
  <xs:sequence>
    <xs:element name="ClaimedRole" type="xs:token"/>
  </xs:sequence>
</xs:complexType>

Complex Type CertifiedRolesListType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

SignerRoleType/CertifiedRoles

Model

CertifiedRole+

Children

CertifiedRole

Source

<xs:complexType name="CertifiedRolesListType">
  <xs:sequence>
    <xs:element name="CertifiedRole" type="EncapsulatedPKIDataType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type SignedDataObjectPropertiesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

SignedDataObjectProperties, SignedPropertiesType/SignedDataObjectProperties

Model

DataObjectFormat* , CommitmentTypeIndication* , AllDataObjectsTimeStamp* , IndividualDataObjectsTimeStamp*

Children

AllDataObjectsTimeStamp, CommitmentTypeIndication, DataObjectFormat, IndividualDataObjectsTimeStamp

Source

<xs:complexType name="SignedDataObjectPropertiesType">
  <xs:sequence>
    <xs:element name="DataObjectFormat" type="DataObjectFormatType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="CommitmentTypeIndication" type="CommitmentTypeIndicationType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="AllDataObjectsTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="IndividualDataObjectsTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type DataObjectFormatType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

DataObjectFormat, SignedDataObjectPropertiesType/DataObjectFormat

Model

Description{0,1} , ObjectIdentifier{0,1} , MimeType{0,1} , Encoding{0,1}

Children

Description, Encoding, MimeType, ObjectIdentifier

Attributes

QName	Type	Fixed	Default	Use	Annotation
ObjectReference	xs:anyURI			required

Source

<xs:complexType name="DataObjectFormatType">
  <xs:sequence>
    <xs:element name="Description" type="xs:string" minOccurs="0"/>
    <xs:element name="ObjectIdentifier" type="ObjectIdentifierType" minOccurs="0"/>
    <xs:element name="MimeType" type="xs:string" minOccurs="0"/>
    <xs:element name="Encoding" type="xs:anyURI" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="ObjectReference" type="xs:anyURI" use="required"/>
</xs:complexType>

Complex Type CommitmentTypeIndicationType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CommitmentTypeIndication, SignedDataObjectPropertiesType/CommitmentTypeIndication

Model

CommitmentTypeId , (ObjectReference* | AllSignedDataObjects) , CommitmentTypeQualifiers{0,1}

Children

AllSignedDataObjects, CommitmentTypeId, CommitmentTypeQualifiers, ObjectReference

Source

<xs:complexType name="CommitmentTypeIndicationType">
  <xs:sequence>
    <xs:element name="CommitmentTypeId" type="ObjectIdentifierType"/>
    <xs:choice>
      <xs:element name="ObjectReference" type="xs:anyURI" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="AllSignedDataObjects"/>
    </xs:choice>
    <xs:element name="CommitmentTypeQualifiers" type="CommitmentTypeQualifiersListType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type CommitmentTypeQualifiersListType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

CommitmentTypeIndicationType/CommitmentTypeQualifiers

Model

CommitmentTypeQualifier*

Children

CommitmentTypeQualifier

Source

<xs:complexType name="CommitmentTypeQualifiersListType">
  <xs:sequence>
    <xs:element name="CommitmentTypeQualifier" type="AnyType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type UnsignedPropertiesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

QualifyingPropertiesType/UnsignedProperties, UnsignedProperties

Model

UnsignedSignatureProperties{0,1} , UnsignedDataObjectProperties{0,1}

Children

UnsignedDataObjectProperties, UnsignedSignatureProperties

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:complexType name="UnsignedPropertiesType">
  <xs:sequence>
    <xs:element name="UnsignedSignatureProperties" type="UnsignedSignaturePropertiesType" minOccurs="0"/>
    <xs:element name="UnsignedDataObjectProperties" type="UnsignedDataObjectPropertiesType" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Complex Type UnsignedSignaturePropertiesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

UnsignedPropertiesType/UnsignedSignatureProperties, UnsignedSignatureProperties

Model

Children

Source

<xs:complexType name="UnsignedSignaturePropertiesType">
  <xs:sequence>
    <xs:element name="CounterSignature" type="CounterSignatureType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="SignatureTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="CompleteCertificateRefs" type="CompleteCertificateRefsType" minOccurs="0"/>
    <xs:element name="CompleteRevocationRefs" type="CompleteRevocationRefsType" minOccurs="0"/>
    <xs:choice>
      <xs:element name="SigAndRefsTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="RefsOnlyTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>
    </xs:choice>
    <xs:element name="CertificateValues" type="CertificateValuesType" minOccurs="0"/>
    <xs:element name="RevocationValues" type="RevocationValuesType" minOccurs="0"/>
    <xs:element name="ArchiveTimeStamp" type="TimeStampType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type CounterSignatureType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CounterSignature, UnsignedSignaturePropertiesType/CounterSignature

Model

ds:Signature

Children

ds:Signature

Source

<xs:complexType name="CounterSignatureType">
  <xs:sequence>
    <xs:element ref="ds:Signature"/>
  </xs:sequence>
</xs:complexType>

Complex Type CompleteCertificateRefsType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CompleteCertificateRefs, UnsignedSignaturePropertiesType/CompleteCertificateRefs

Model

CertRefs

Children

CertRefs

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:complexType name="CompleteCertificateRefsType">
  <xs:sequence>
    <xs:element name="CertRefs" type="CertIDListType"/>
  </xs:sequence>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Complex Type CompleteRevocationRefsType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CompleteRevocationRefs, UnsignedSignaturePropertiesType/CompleteRevocationRefs

Model

CRLRefs{0,1} , OCSPRefs{0,1} , OtherRefs{0,1}

Children

CRLRefs, OCSPRefs, OtherRefs

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:complexType name="CompleteRevocationRefsType">
  <xs:sequence>
    <xs:element name="CRLRefs" type="CRLRefsType" minOccurs="0"/>
    <xs:element name="OCSPRefs" type="OCSPRefsType" minOccurs="0"/>
    <xs:element name="OtherRefs" type="OtherCertStatusRefsType" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Complex Type CRLRefsType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

CompleteRevocationRefsType/CRLRefs

Model

CRLRef+

Children

CRLRef

Source

<xs:complexType name="CRLRefsType">
  <xs:sequence>
    <xs:element name="CRLRef" type="CRLRefType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type CRLRefType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

CRLRefsType/CRLRef

Model

DigestAlgAndValue , CRLIdentifier{0,1}

Children

CRLIdentifier, DigestAlgAndValue

Source

<xs:complexType name="CRLRefType">
  <xs:sequence>
    <xs:element name="DigestAlgAndValue" type="DigestAlgAndValueType"/>
    <xs:element name="CRLIdentifier" type="CRLIdentifierType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type CRLIdentifierType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

CRLRefType/CRLIdentifier

Model

Issuer , IssueTime , Number{0,1}

Children

IssueTime, Issuer, Number

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			optional

Source

<xs:complexType name="CRLIdentifierType">
  <xs:sequence>
    <xs:element name="Issuer" type="xs:string"/>
    <xs:element name="IssueTime" type="xs:dateTime"/>
    <xs:element name="Number" type="xs:integer" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="URI" type="xs:anyURI" use="optional"/>
</xs:complexType>

Complex Type OCSPRefsType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

CompleteRevocationRefsType/OCSPRefs

Model

OCSPRef+

Children

OCSPRef

Source

<xs:complexType name="OCSPRefsType">
  <xs:sequence>
    <xs:element name="OCSPRef" type="OCSPRefType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type OCSPRefType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

OCSPRefsType/OCSPRef

Model

OCSPIdentifier , DigestAlgAndValue{0,1}

Children

DigestAlgAndValue, OCSPIdentifier

Source

<xs:complexType name="OCSPRefType">
  <xs:sequence>
    <xs:element name="OCSPIdentifier" type="OCSPIdentifierType"/>
    <xs:element name="DigestAlgAndValue" type="DigestAlgAndValueType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type OCSPIdentifierType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

OCSPRefType/OCSPIdentifier

Model

ResponderID , ProducedAt

Children

ProducedAt, ResponderID

Attributes

QName	Type	Fixed	Default	Use	Annotation
URI	xs:anyURI			optional

Source

<xs:complexType name="OCSPIdentifierType">
  <xs:sequence>
    <xs:element name="ResponderID" type="xs:string"/>
    <xs:element name="ProducedAt" type="xs:dateTime"/>
  </xs:sequence>
  <xs:attribute name="URI" type="xs:anyURI" use="optional"/>
</xs:complexType>

Complex Type OtherCertStatusRefsType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

CompleteRevocationRefsType/OtherRefs

Model

OtherRef+

Children

OtherRef

Source

<xs:complexType name="OtherCertStatusRefsType">
  <xs:sequence>
    <xs:element name="OtherRef" type="AnyType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type CertificateValuesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

CertificateValues, UnsignedSignaturePropertiesType/CertificateValues

Model

EncapsulatedX509Certificate | OtherCertificate

Children

EncapsulatedX509Certificate, OtherCertificate

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:complexType name="CertificateValuesType">
  <xs:choice minOccurs="0" maxOccurs="unbounded">
    <xs:element name="EncapsulatedX509Certificate" type="EncapsulatedPKIDataType"/>
    <xs:element name="OtherCertificate" type="AnyType"/>
  </xs:choice>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Complex Type RevocationValuesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

RevocationValues, UnsignedSignaturePropertiesType/RevocationValues

Model

CRLValues{0,1} , OCSPValues{0,1} , OtherValues{0,1}

Children

CRLValues, OCSPValues, OtherValues

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional

Source

<xs:complexType name="RevocationValuesType">
  <xs:sequence>
    <xs:element name="CRLValues" type="CRLValuesType" minOccurs="0"/>
    <xs:element name="OCSPValues" type="OCSPValuesType" minOccurs="0"/>
    <xs:element name="OtherValues" type="OtherCertStatusValuesType" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Complex Type CRLValuesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

RevocationValuesType/CRLValues

Model

EncapsulatedCRLValue+

Children

EncapsulatedCRLValue

Source

<xs:complexType name="CRLValuesType">
  <xs:sequence>
    <xs:element name="EncapsulatedCRLValue" type="EncapsulatedPKIDataType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type OCSPValuesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

RevocationValuesType/OCSPValues

Model

EncapsulatedOCSPValue+

Children

EncapsulatedOCSPValue

Source

<xs:complexType name="OCSPValuesType">
  <xs:sequence>
    <xs:element name="EncapsulatedOCSPValue" type="EncapsulatedPKIDataType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type OtherCertStatusValuesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

RevocationValuesType/OtherValues

Model

OtherValue+

Children

OtherValue

Source

<xs:complexType name="OtherCertStatusValuesType">
  <xs:sequence>
    <xs:element name="OtherValue" type="AnyType" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type UnsignedDataObjectPropertiesType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Elements

UnsignedDataObjectProperties, UnsignedPropertiesType/UnsignedDataObjectProperties

Model

UnsignedDataObjectProperty*

Children

UnsignedDataObjectProperty

Source

<xs:complexType name="UnsignedDataObjectPropertiesType">
  <xs:sequence>
    <xs:element name="UnsignedDataObjectProperty" type="AnyType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Complex Type QualifyingPropertiesReferenceType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

QualifyingPropertiesReference

Model

Transforms{0,1}

Children

Transforms

Attributes

QName	Type	Fixed	Default	Use	Annotation
Id	xs:ID			optional
URI	xs:anyURI			required

Source

<xs:complexType name="QualifyingPropertiesReferenceType">
  <xs:sequence>
    <xs:element name="Transforms" type="ds:TransformsType" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="URI" type="xs:anyURI" use="required"/>
  <xs:attribute name="Id" type="xs:ID" use="optional"/>
</xs:complexType>

Complex Type SPUserNoticeType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

SPUserNotice

Model

NoticeRef{0,1} , ExplicitText{0,1}

Children

ExplicitText, NoticeRef

Source

<xs:complexType name="SPUserNoticeType">
  <xs:sequence>
    <xs:element name="NoticeRef" type="NoticeReferenceType" minOccurs="0"/>
    <xs:element name="ExplicitText" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

Complex Type NoticeReferenceType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

SPUserNoticeType/NoticeRef

Model

Organization , NoticeNumbers

Children

NoticeNumbers, Organization

Source

<xs:complexType name="NoticeReferenceType">
  <xs:sequence>
    <xs:element name="Organization" type="xs:string"/>
    <xs:element name="NoticeNumbers" type="IntegerListType"/>
  </xs:sequence>
</xs:complexType>

Complex Type IntegerListType

Namespace

http://uri.etsi.org/01903/v1.1.1#

Diagram

Used by

Element

NoticeReferenceType/NoticeNumbers

Model

int*

Children

int

Source

<xs:complexType name="IntegerListType">
  <xs:sequence>
    <xs:element name="int" type="xs:integer" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

Attribute IdentifierType / @Qualifier

Namespace

No namespace

Type

QualifierType

Properties

use:	optional

Facets

enumeration	OIDAsURN
enumeration	OIDAsURI

Used by

Complex Type

IdentifierType

Source

<xs:attribute name="Qualifier" type="QualifierType" use="optional"/>

Attribute EncapsulatedPKIDataType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

EncapsulatedPKIDataType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>

Attribute HashDataInfoType / @URI

Namespace

No namespace

Type

xs:anyURI

Properties

use:	required

Used by

Complex Type

HashDataInfoType

Source

<xs:attribute name="URI" type="xs:anyURI" use="required"/>

Attribute CertIDType / @URI

Namespace

No namespace

Type

xs:anyURI

Properties

use:	optional

Used by

Complex Type

CertIDType

Source

<xs:attribute name="URI" type="xs:anyURI" use="optional"/>

Attribute DataObjectFormatType / @ObjectReference

Namespace

No namespace

Type

xs:anyURI

Properties

use:	required

Used by

Complex Type

DataObjectFormatType

Source

<xs:attribute name="ObjectReference" type="xs:anyURI" use="required"/>

Attribute SignedPropertiesType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

SignedPropertiesType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>

Attribute CompleteCertificateRefsType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

CompleteCertificateRefsType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>

Attribute CRLIdentifierType / @URI

Namespace

No namespace

Type

xs:anyURI

Properties

use:	optional

Used by

Complex Type

CRLIdentifierType

Source

<xs:attribute name="URI" type="xs:anyURI" use="optional"/>

Attribute OCSPIdentifierType / @URI

Namespace

No namespace

Type

xs:anyURI

Properties

use:	optional

Used by

Complex Type

OCSPIdentifierType

Source

<xs:attribute name="URI" type="xs:anyURI" use="optional"/>

Attribute CompleteRevocationRefsType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

CompleteRevocationRefsType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>

Attribute CertificateValuesType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

CertificateValuesType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>

Attribute RevocationValuesType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

RevocationValuesType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>

Attribute UnsignedPropertiesType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

UnsignedPropertiesType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>

Attribute QualifyingPropertiesType / @Target

Namespace

No namespace

Type

xs:anyURI

Properties

use:	required

Used by

Complex Type

QualifyingPropertiesType

Source

<xs:attribute name="Target" type="xs:anyURI" use="required"/>

Attribute QualifyingPropertiesType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

QualifyingPropertiesType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>

Attribute QualifyingPropertiesReferenceType / @URI

Namespace

No namespace

Type

xs:anyURI

Properties

use:	required

Used by

Complex Type

QualifyingPropertiesReferenceType

Source

<xs:attribute name="URI" type="xs:anyURI" use="required"/>

Attribute QualifyingPropertiesReferenceType / @Id

Namespace

No namespace

Type

xs:ID

Properties

use:	optional

Used by

Complex Type

QualifyingPropertiesReferenceType

Source

<xs:attribute name="Id" type="xs:ID" use="optional"/>
